Jakob Rope Systems

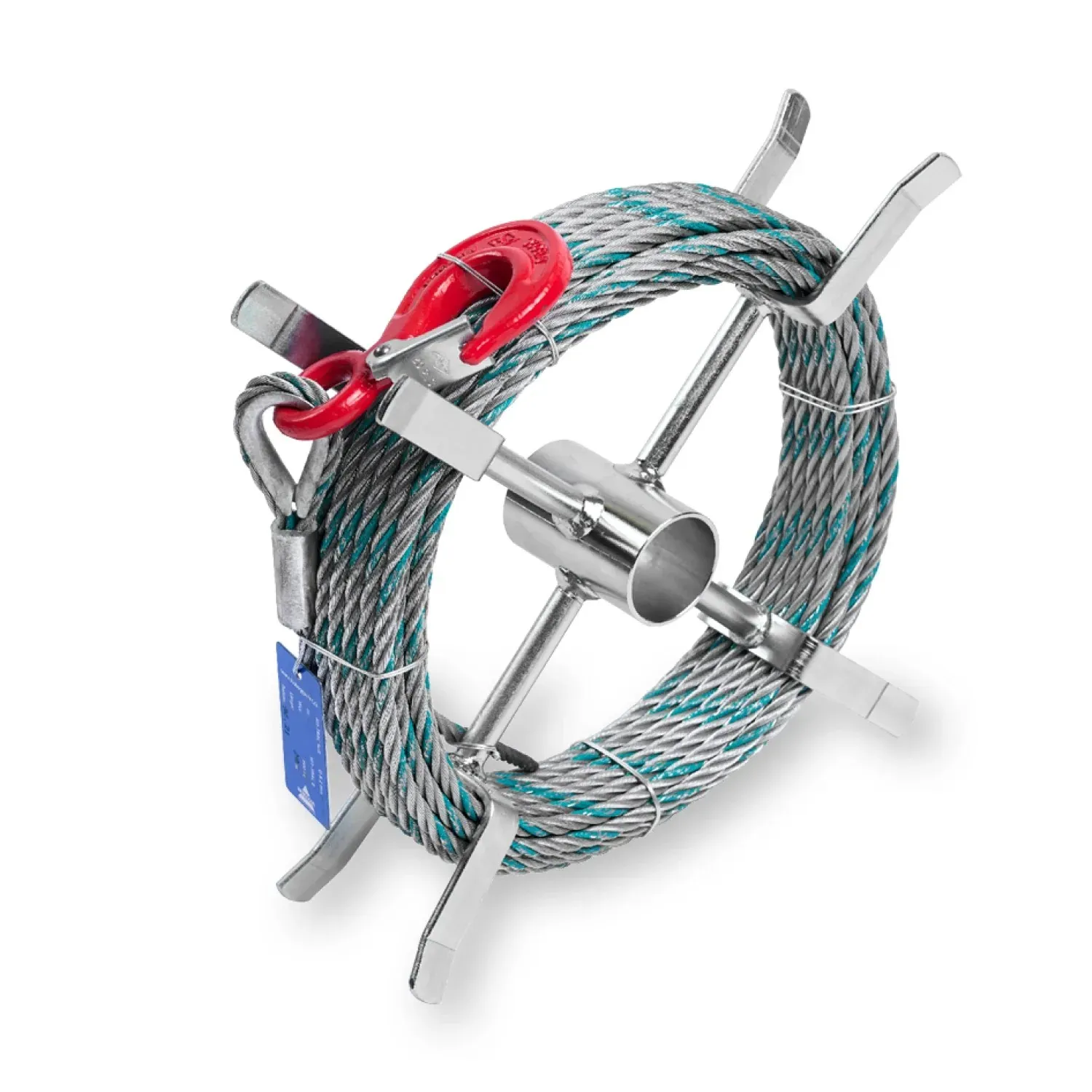

Hoist rope Habegger swaged for HIT-TRAC 16
Motorized rope hoist HIT-TRAC 16 by Jakob Rope Systems, steel wire. 13 sizes, article no. 07312 to 07326.
Price on request
- For controlled lifting, pulling and load monitoring
- Selected to your loads and duty
- Installation and integration by 828
- Inspection, load testing and certification available
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 07312 |
| Category | Lifting & Load Measurement |
| Product family | Motorized rope hoist HIT-TRAC 16 |
| Material | Steel |
| Sizes available | 13 article numbers |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Overhead, Gantry & Jib Cranes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 07312
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | ø | L | kg | Surface | Nominal strength (Mat. strength) |
|---|---|---|---|---|---|
| 07312 | 11.2 | 25 | 14.2800 | galvanized | 1960 N/mm2 |
| 07313 | 11.2 | 30 | 17.7900 | galvanized | 1960 N/mm2 |
| 07314 | 11.2 | 40 | 22.6900 | galvanized | 1960 N/mm2 |
| 07315 | 11.2 | 50 | 27.5900 | galvanized | 1960 N/mm2 |
| 07316 | 11.2 | 60 | 32.4900 | galvanized | 1960 N/mm2 |
| 07317 | 11.2 | 70 | 34.5000 | galvanized | 1960 N/mm2 |
| 07318 | 11.2 | 80 | 30.0000 | galvanized | 1960 N/mm2 |
| 07319 | 11.2 | 90 | 42.7000 | galvanized | 1960 N/mm2 |
| 07320 | 11.2 | 100 | 52.0000 | ||
| 07321 | 11.2 | 150 | 93.0000 | ||
| 07322 | 11.2 | 200 | 108.0000 | ||
| 07323 | 11.2 | 300 | 147.0000 | ||
| 07326 | 11.2 | 20 | 11.6000 | galvanized | 1960 N/mm2 |
- one end with eye hook, the other end tapered
- Wound on reel
