Jakob Rope Systems

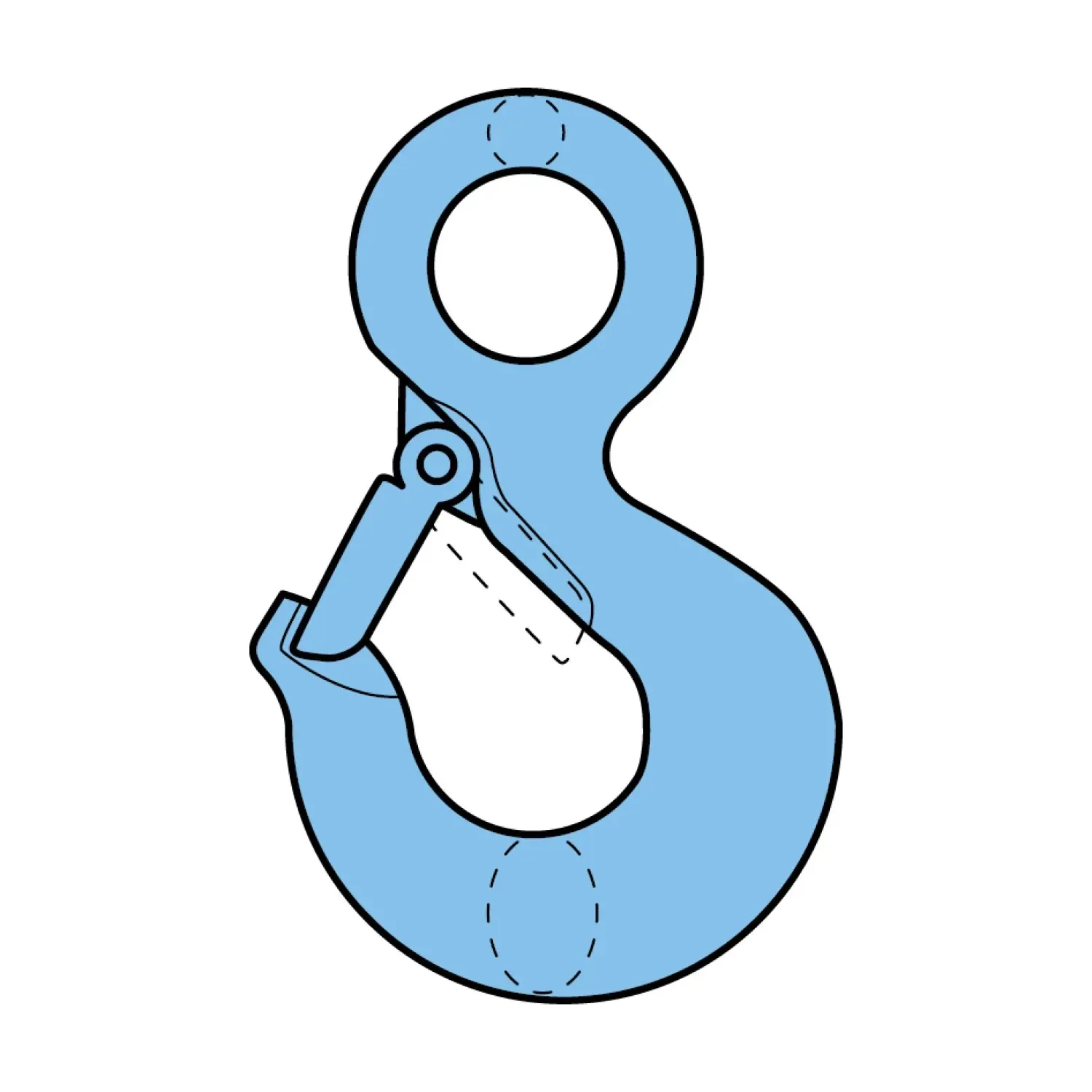

Hoist hook drop-forged
Lifting accessories by Jakob Rope Systems, steel. 9 sizes, article no. 30490-0080 to 30490-1500.
Price on request
- Rated ropes, chains and slings with documented working loads
- Terminations and accessories matched to the rope
- Rigging and lifting design by 828 engineers
- Inspection, load testing and certification available
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 30490 |
| Category | Wire Rope, Chain & Rigging |
| Product family | Lifting accessories |
| Material | Steel |
| Surface | painted |
| Sizes available | 9 article numbers |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Overhead, Gantry & Jib Cranes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 30490
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | b1 | b2 | g | ø d1 | ø d2 | WLL kN | kg |
|---|---|---|---|---|---|---|---|
| 30490-0080 | 113 | 85 | 23 | 19 | 9 | 7.5 | 0.3000 |
| 30490-0100 | 129 | 97 | 24 | 23 | 11 | 10 | 0.4000 |
| 30490-0160 | 146 | 108 | 25 | 29 | 14 | 16 | 0.7000 |
| 30490-0200 | 166 | 122 | 29 | 32 | 15 | 20 | 1.0000 |
| 30490-0320 | 205 | 150 | 37 | 40 | 18 | 32 | 1.9000 |
| 30490-0500 | 262 | 193 | 44 | 51 | 23 | 50 | 4.0000 |
| 30490-0750 | 321 | 236 | 58 | 62 | 28 | 75 | 7.0000 |
| 30490-1000 | 359 | 261 | 63 | 72 | 39 | 100 | 10.0000 |
| 30490-1500 | 445 | 329 | 84 | 89 | 44 | 150 | 18.0000 |
- Drop-forged, made of alloy steel and tempered
- Safety factor 5
