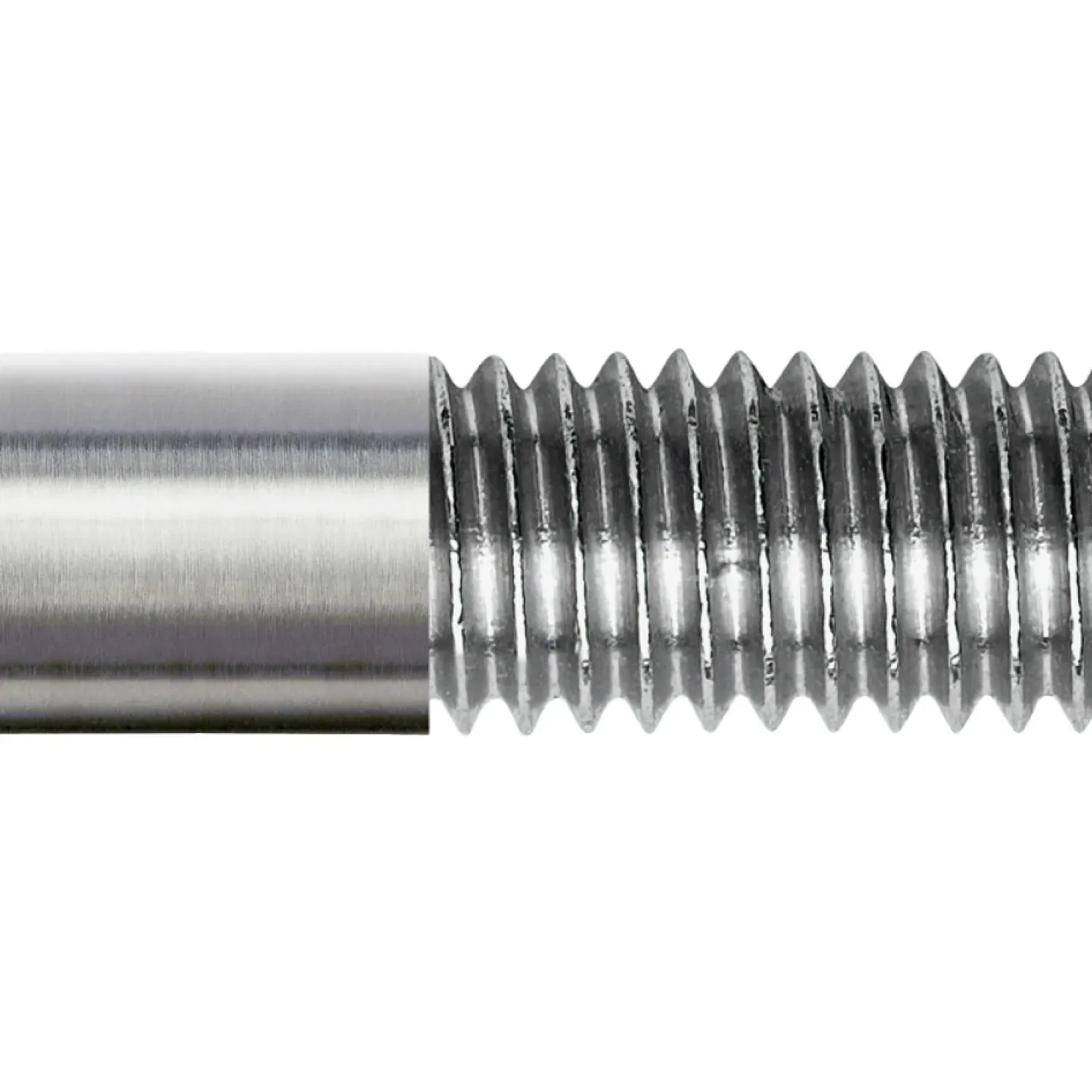

Hexagon socket head cap screw low head with Shaft
Screws and standard parts by Jakob Rope Systems, stainless steel AISI 316 (1.4401). 6 sizes, article no. 30844-0801-040 to 30844-0801-120.
Price on request
- Marine-grade stainless steel for long service life
- Complete system: rope or rod, terminals and fixings from one range
- Load and tension design by 828 rope engineers
- Supply, swaging and installation by 828
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 30844-0801 |
| Category | Architectural Cables & Fittings |
| Product family | Screws and standard parts |
| Material | Stainless steel 316 |
| Standard | DIN 7984 |
| Nominal strength | A4 |
| Sizes available | 6 article numbers |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Architectural Ropes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 30844-0801
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | a | c1 | c2 | k2 | ø d1 | sw | kg |
|---|---|---|---|---|---|---|---|
| 30844-0801-040 | M8 | 25 | 40 | 5 | 13 | 5 | 0.0170 |
| 30844-0801-050 | M8 | 25 | 50 | 5 | 13 | 5 | 0.0220 |
| 30844-0801-060 | M8 | 25 | 60 | 5 | 13 | 5 | 0.0260 |
| 30844-0801-080 | M8 | 25 | 80 | 5 | 13 | 5 | 0.0330 |
| 30844-0801-100 | M8 | 25 | 100 | 5 | 13 | 5 | 0.0410 |
| 30844-0801-120 | M8 | 25 | 120 | 5 | 13 | 5 | 0.0470 |
- DIN 7984
