Jakob Rope Systems

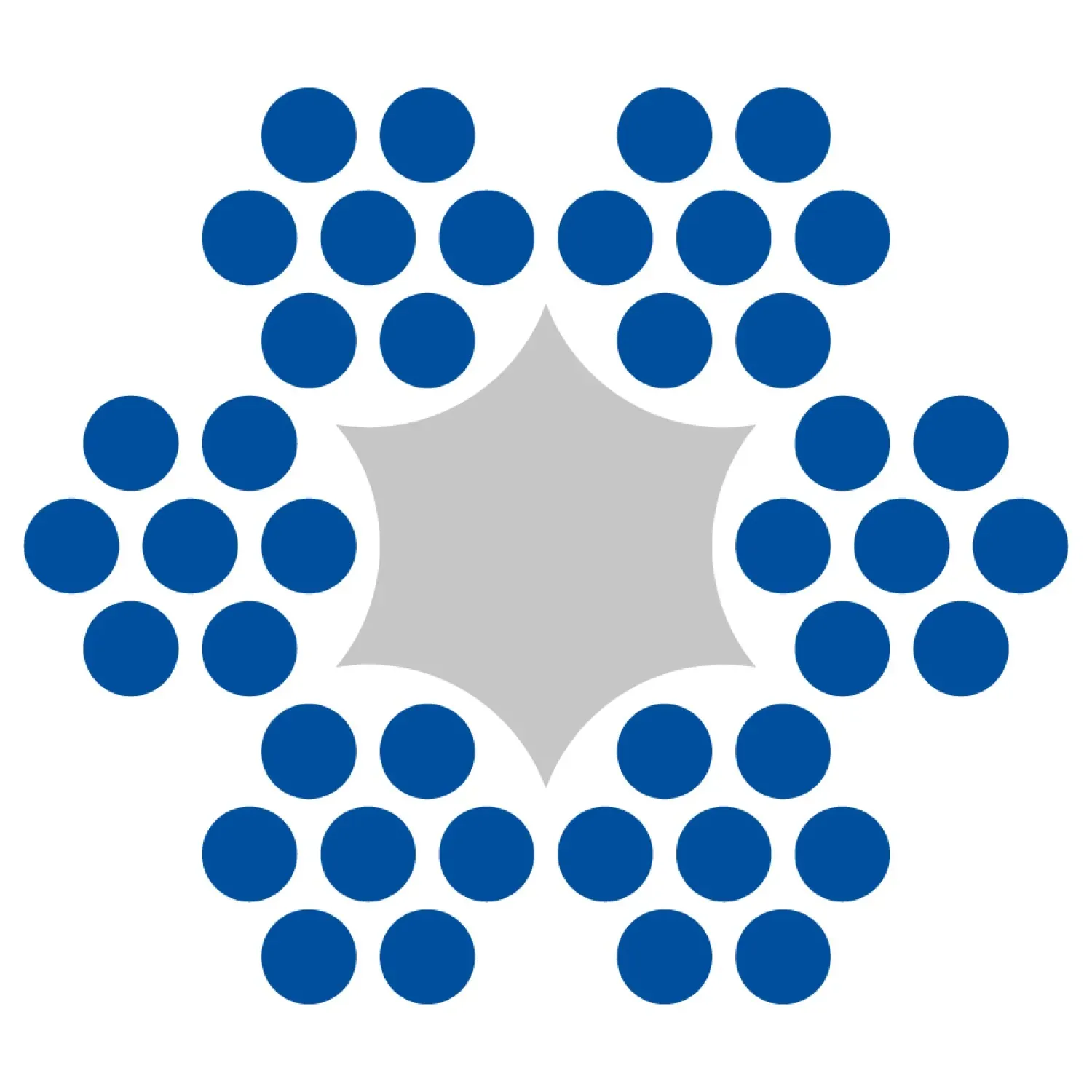

Hauling- and carrying rope 6 x 7 + FC
Cableway ropes by Jakob Rope Systems, steel wire. 9 sizes, article no. 10325-1050-01 to 10325-2200-01.
Price on request
- Rated ropes, chains and slings with documented working loads
- Terminations and accessories matched to the rope
- Rigging and lifting design by 828 engineers
- Inspection, load testing and certification available
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 10325 |
| Category | Wire Rope, Chain & Rigging |
| Product family | Cableway ropes |
| Material | Steel |
| Surface | galvanized |
| Standard | EN 12385 |
| Sizes available | 9 article numbers |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Overhead, Gantry & Jib Cranes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 10325
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | ø | Constr | MBL kN | kg | Nominal strength (Mat. strength) |
|---|---|---|---|---|---|
| 10325-1050-01 | 10.5 | 6 x 7 + FC | 67 | 0.3300 | 1860 N/mm² |
| 10325-1200-01 | 12 | 6 x 7 + FC | 88 | 0.4900 | 1860 N/mm2 |
| 10325-1400-01 | 14 | 6 x 7 + FC | 127 | 0.6700 | 1860 N/mm2 |
| 10325-1500-01 | 15 | 6 x 7 + FC | 144 | 0.7700 | 1860 N/mm2 |
| 10325-1600-01 | 16 | 6 x 7 + FC | 162 | 0.8600 | 1860 N/mm2 |
| 10325-1800-01 | 18 | 6 x 7 + FC | 202 | 1.0900 | 1860 N/mm2 |
| 10325-1950-01 | 19.5 | 6 x 7 + FC | 228 | 1.3100 | 1860 N/mm2 |
| 10325-2000-01 | 20 | 6 x 7 + FC | 246 | 1.3200 | 1860 N/mm2 |
| 10325-2200-01 | 22 | 6 x 7 + FC | 298 | 1.5800 | 1860 N/mm2 |
- Other designs, strengths and lay directions on request
