Jakob Rope Systems

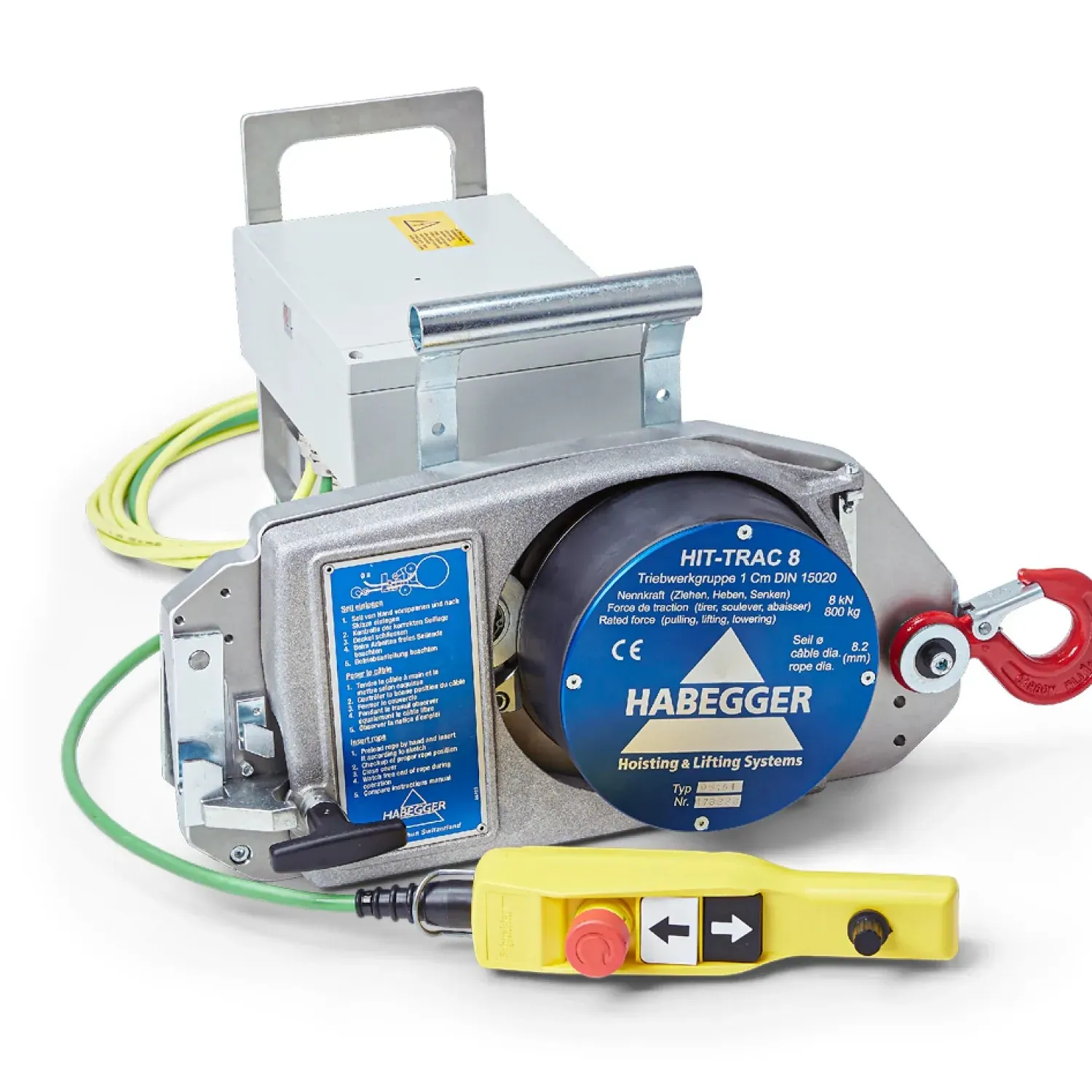

Habegger HIT-TRAC 8E electric motorized rope hoist
Motorized rope hoist HIT-TRAC 8 by Jakob Rope Systems. 1 size, article no. 06151.
Price on request
- For controlled lifting, pulling and load monitoring
- Selected to your loads and duty
- Installation and integration by 828
- Inspection, load testing and certification available
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 06151 |
| Category | Lifting & Load Measurement |
| Product family | Motorized rope hoist HIT-TRAC 8 |
| Sizes available | 1 article number |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Overhead, Gantry & Jib Cranes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 06151
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | ø | WLL kN | kg |
|---|---|---|---|
| 06151 | 8.2 | 8 | 32.0000 |
- Power: 1 kW, voltage: 50 Hz / 1x230 V, 10 A
- Rope speed: 0-6 m/min
- Intermittent duty: 30 %, overload protection by current limitation at approx. 20 % overload
- Control cable: 3 m
