Jakob Rope Systems

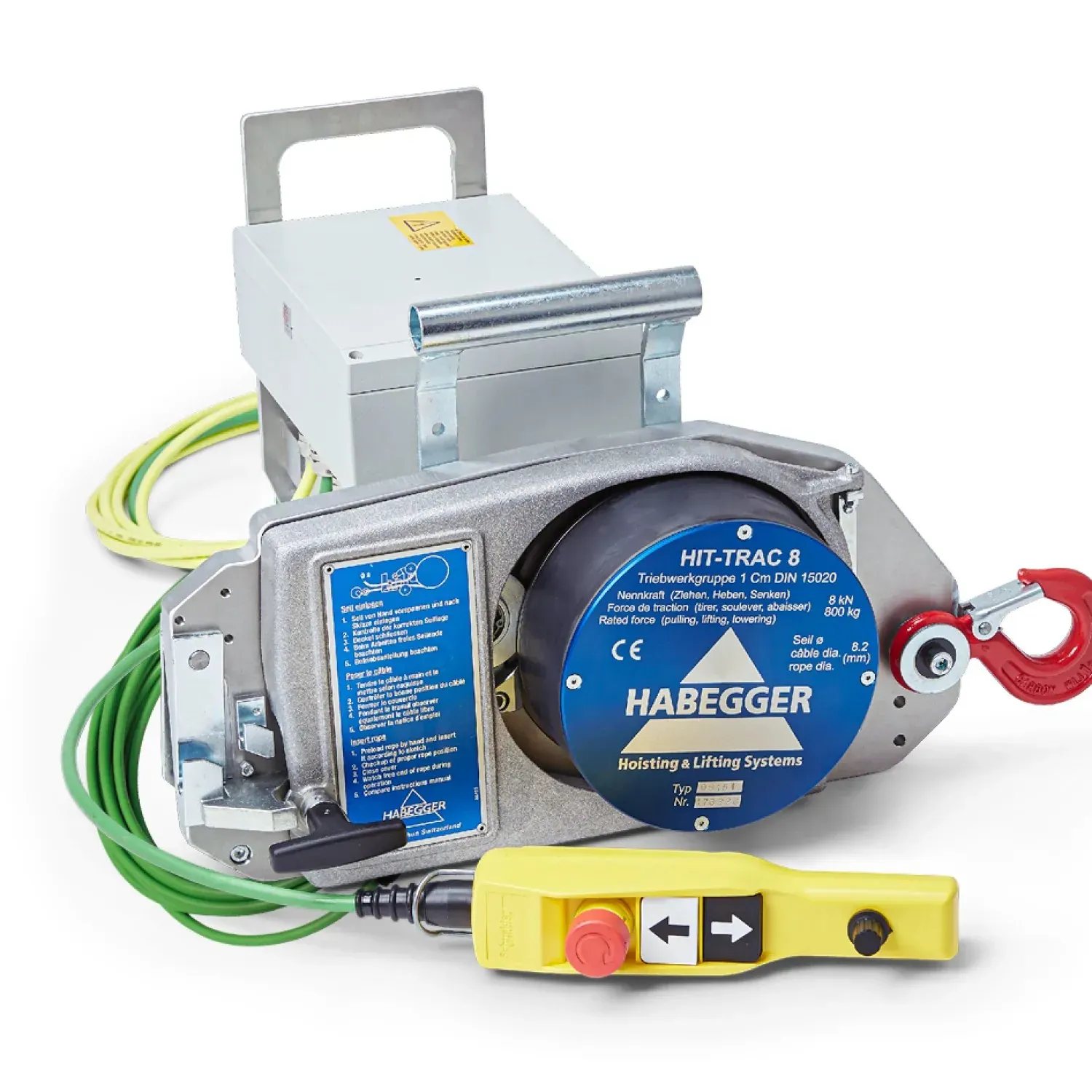

Habegger HIT-TRAC 8E electric motorized rope hoist plug-in pedant button
Motorized rope hoist HIT-TRAC 8 by Jakob Rope Systems. 1 size, article no. 06151-1.
Price on request
- For controlled lifting, pulling and load monitoring
- Selected to your loads and duty
- Installation and integration by 828
- Inspection, load testing and certification available
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 06151-1 |
| Category | Lifting & Load Measurement |
| Product family | Motorized rope hoist HIT-TRAC 8 |
| Sizes available | 1 article number |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Overhead, Gantry & Jib Cranes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 06151-1
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | ø | WLL kN | kg |
|---|---|---|---|
| 06151-1 | 8.2 | 8 | 32.0000 |
- Power: 1 kW, voltage: 50 Hz / 1x230 V, 10 A
- Rope speed: 0-6 m/min
- Intermittent duty: 30 %, overload protection by current limitation at approx. 20 % overload
- Plug for control cable: 5 m plug-in
