Jakob Rope Systems

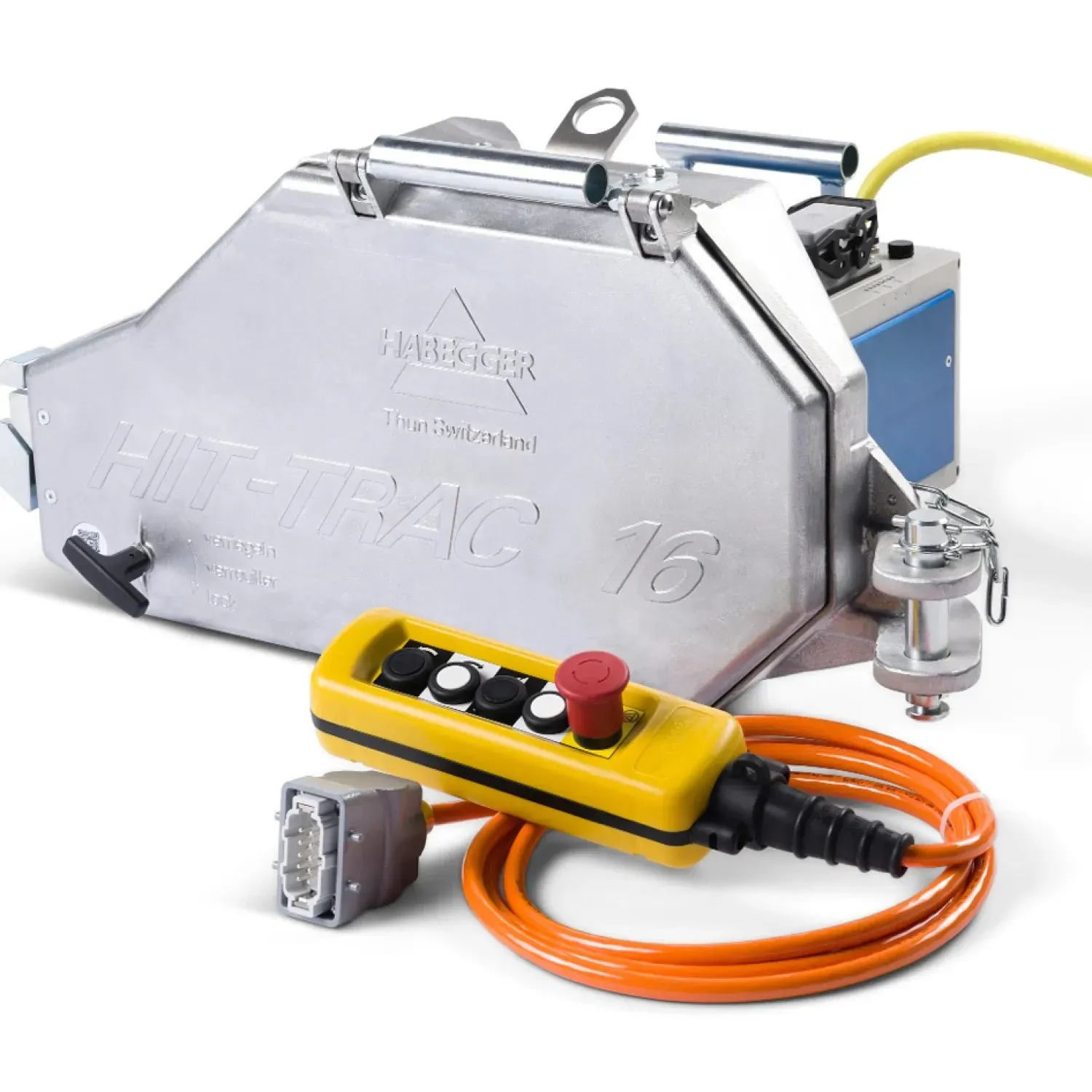

Habegger HIT-TRAC 16E neo electric motorized rope hoist
Motorized rope hoist HIT-TRAC 16 by Jakob Rope Systems. 1 size, article no. 07800.
Price on request
- For controlled lifting, pulling and load monitoring
- Selected to your loads and duty
- Installation and integration by 828
- Inspection, load testing and certification available
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 07800 |
| Category | Lifting & Load Measurement |
| Product family | Motorized rope hoist HIT-TRAC 16 |
| Sizes available | 1 article number |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Overhead, Gantry & Jib Cranes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 07800
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | ø | WLL kN | kg |
|---|---|---|---|
| 07800 | 11.2 | 16 | 43.0000 |
- Power: 3 kW, Voltage: 50 Hz / 3x400 V, 6.0 A
- with display, rated load regulation and plug-in pendant button
- Rope speed: 0-10 m/min
- Intermittent duty lifting: 30 %
- Lightweight with smart control
- Overload protection by current limitation at approx. 20 % overload
- Load and overload LED display
- Stepless traction control
