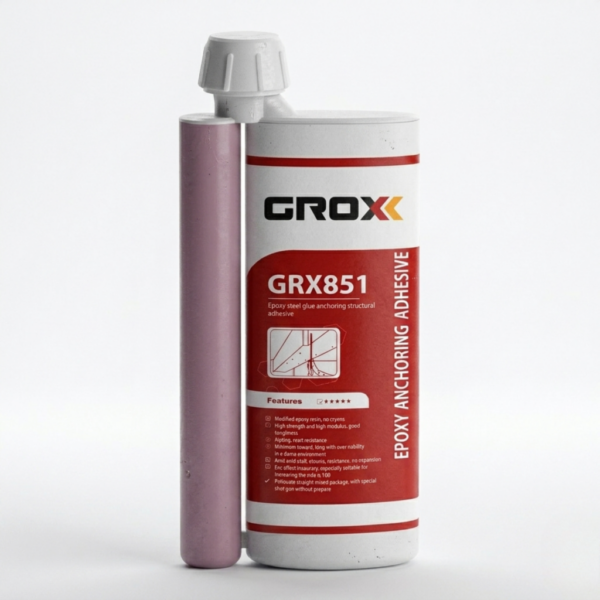

GRX Nugget | Chemical Anchor

Product Overview

System Type: Modified epoxy resin, styrene-free, safe, and non-toxic.

Application: Suitable for structural reinforcement, equipment installation, and fixing curtain wall brackets.

Versatility: Ideal for anchoring on side or top surfaces due to excellent thixotropic properties.

Operation: Injection-type system that eliminates the need for manual mixing, shortening construction progress.

Technical Specifications and Performance

Mixture Ratio (Weight): 3:1.

Viscosity of Mixture: 18-22 pa-s.

Density after Curing: 1.5 +/- 0.10 g/cm3.

Compressive Strength: 126.6 Mpa.

Flexural Strength: 76.7 Mpa (No rupture-like damage).

Split Tensile Strength: 8.75 Mpa.

Steel-Steel Anti-Shear Strength: 18.2 Mpa.

Non-volatile Matter Content: 99.1%.

Curing Schedule The operable and curing times are highly dependent on the ambient temperature

-5 Degrees C: Operable 60 min | Curing 72 h.

10 Degrees C: Operable 30 min | Curing 24 h.

20 Degrees C: Operable 15 min | Curing 16 h.

30 Degrees C or higher: Operable 20 min | Curing 8 h.

Anchor Installation Parameters
Typical data for threaded bar (M8-M16) installation:

M8: Drill 12mm | Depth 80mm-120mm | Volume 6.03-9.04 ML.

M10: Drill 14mm | Depth 100mm-150mm | Volume 10.26-15.08 ML.

M12: Drill 16mm | Depth 120mm-180mm | Volume 16.09-24.12 ML.

M16: Drill 22mm | Depth 160mm-240mm | Volume 40.52-60.79 ML.

Key Advantages

Stability: Low moisture sensitivity for long-term load stability in humid environments.

Resistance: High resistance to acid, alkali, and aging.

Safety: Styrene-free, non-toxic, and anti-shock with no expansion stress fixation.

Effectiveness: High adhesion strength equivalent to pre-embedded reinforcements.

Storage and Packaging

Standard Packing: 585ml cartridges (20 pcs per carton).

Shelf Life: At least 12 months from the date of manufacture when stored correctly.

Storage Conditions: Store in original, upright packaging in cool conditions (+50F to +77F) and out of direct sunlight.
