Jakob Rope Systems

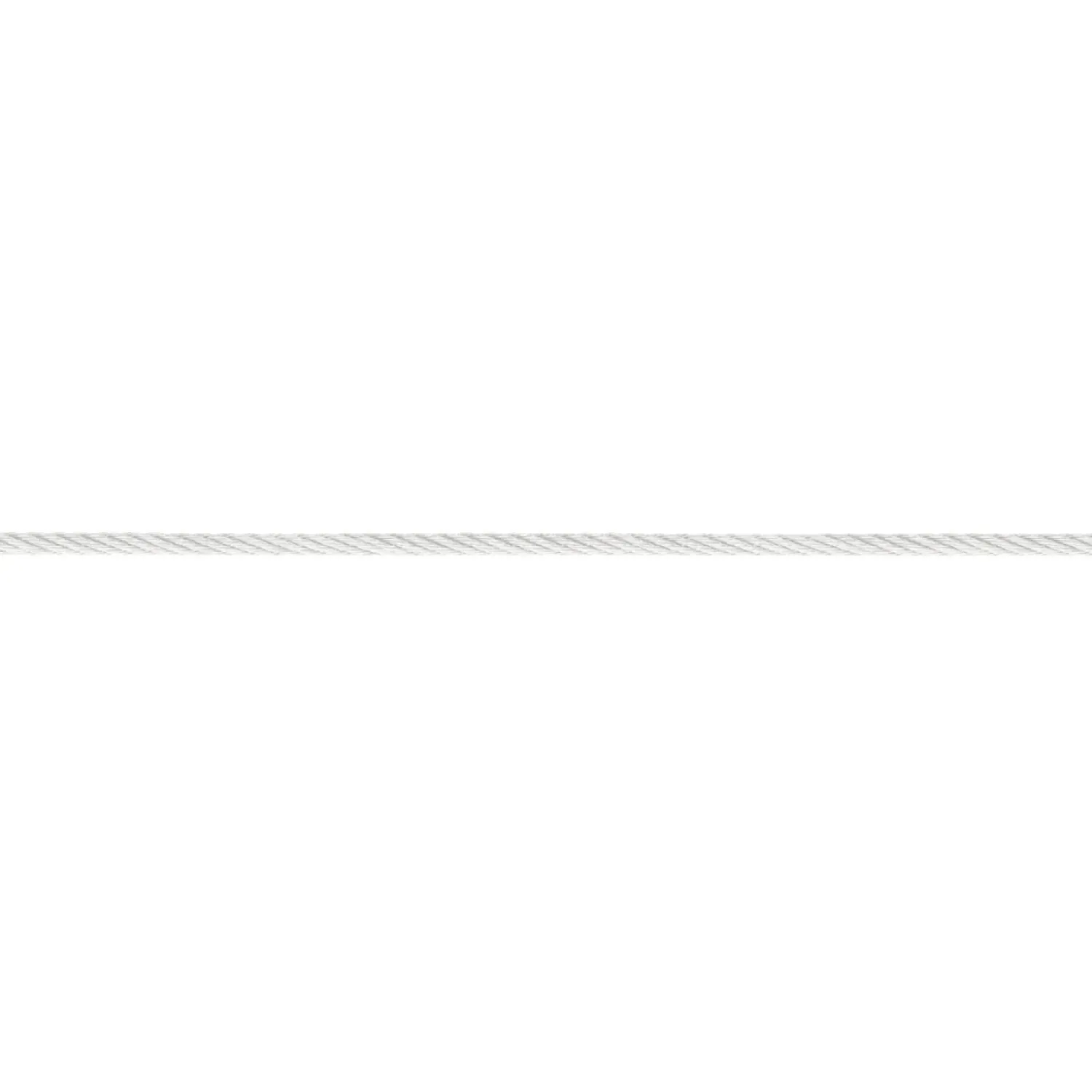

GreenGuide Rope style G1
GreenGuide by Jakob Rope Systems, stainless steel AISI 316 (1.4401). 1 size, article no. 20811-0001.
Price on request
- Transparent, durable stainless steel mesh and frame systems
- For balustrades, enclosures, aviaries and green walls
- Layout and edge-detail design by 828
- Supply and tensioned installation by 828
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 20811-0001 |
| Category | Webnet, Frames & Green Facades |
| Product family | GreenGuide |
| Material | Stainless steel 316 |
| Nominal strength | 1570 N/mm2 |
| Sizes available | 1 article number |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Webnet |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 20811-0001
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | ø | b | k | ø d1 | ø d2 | ø d3 | kg |
|---|---|---|---|---|---|---|---|
| 20811-0001 | 4 | variabel / variable | 12 | 8.5 | 7 | 20 | 0.0323 |
- Component from the GreenGuide solution.
- Suitable for circular strand wire rope 10820-0400. Rope length variable.
- Supplied without spacers, without fastening material for anchoring.
- Compatible with GreenGuide spacers 30919-0100-00 and 30919-0100-10.
- The user is responsible for independently verifying correct installation and rope diameter. Please refer to the instructions in the installation manual.
