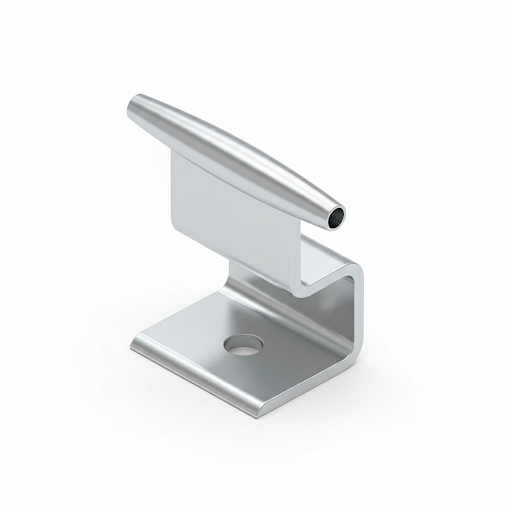

G – Bracket

The Intermediate Bracket is a high-performance component engineered to minimize cable sag across extensive spans. Its versatile design ensures seamless movement and robust support for multi-user safety systems.
Key Features & Versatility

Seamless Transit: Integrated automatic pass-through technology allows the user’s trolley to glide over the bracket without disconnection.

Multi-Directional Install: Fully compatible with both vertical and horizontal system orientations.

Universal Mounting: Can be installed on various surfaces, including ground, walls, roofs, and ceilings.

Post Compatibility: Designed for effortless integration with the Groxx post range using standard M12 fasteners.

Technical Specifications

Attribute
Specification

Material
Grade 316 Stainless Steel (Polished Finish)

Hardware
M16 Bolts, SS316, Grade A4-70

Weight
0.580 kg±0.020 kg

Rated Strength
28 kN

Max Service Load
11.5 kN (Validated for up to 4 concurrent users)

Installation Notes

Standard Mounting: Utilize M12 fasteners for all post-based installations.

Concrete Anchoring: For direct installation into concrete, use M16 Chemical Fasteners. Please refer strictly to the Groxx Chemical Anchor Installation Guide for proper adhesive curing and torque specifications.

Note: To maintain system integrity and safety compliance, ensure brackets are spaced correctly along the entire length of the 8mm wire rope to effectively eliminate sag.
