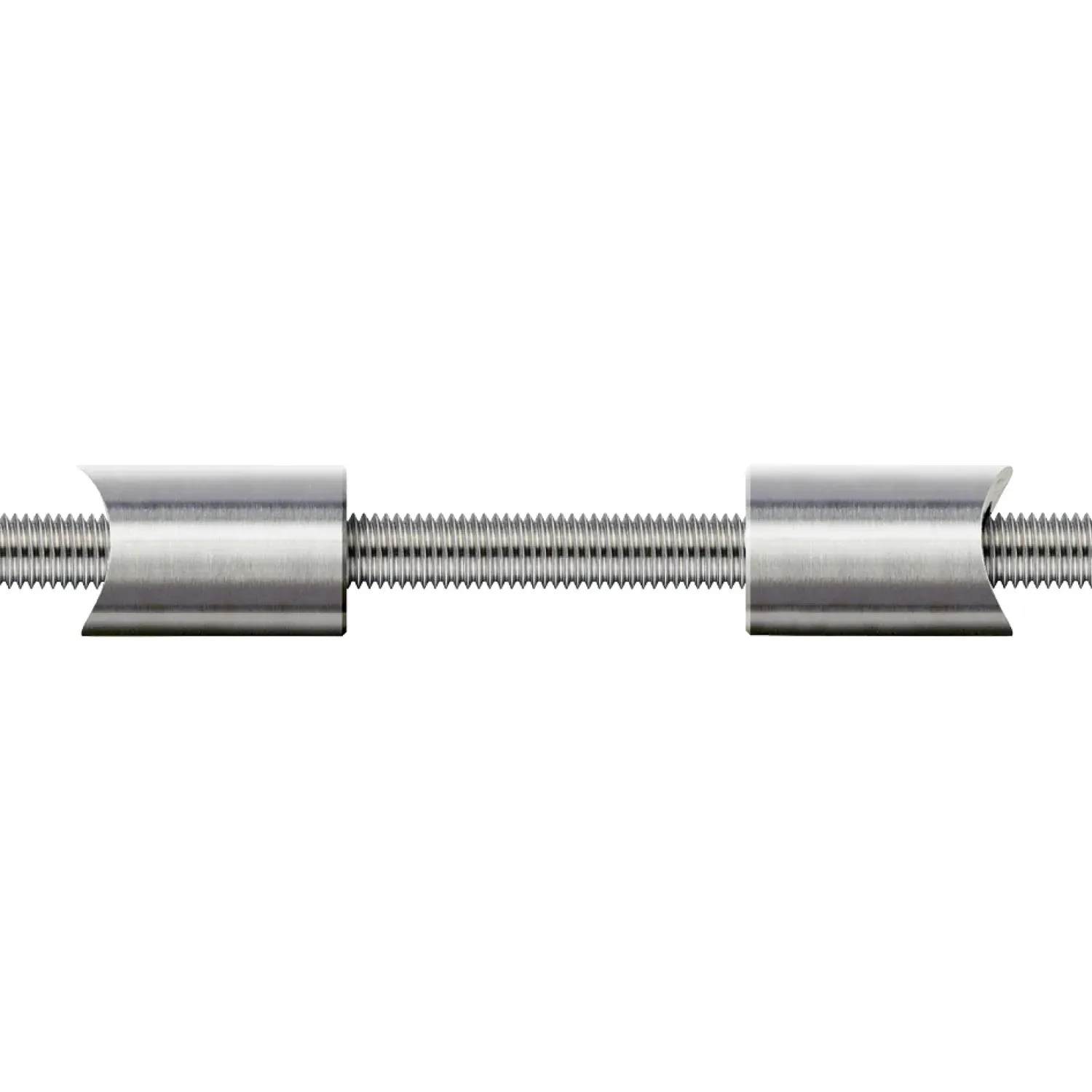

Frame holder two-way for posts made of flat profile or square tube
Frame holders and Frame clamps by Jakob Rope Systems, stainless steel AISI 316L (1.4404). 4 sizes, article no. 30917-0017-14 to 30917-0042-14.
Price on request
- Transparent, durable stainless steel mesh and frame systems
- For balustrades, enclosures, aviaries and green walls
- Layout and edge-detail design by 828
- Supply and tensioned installation by 828
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 30917 |
| Category | Webnet, Frames & Green Facades |
| Product family | Frame holders and Frame clamps |
| Material | Stainless steel 316L |
| Sizes available | 4 article numbers |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Webnet |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 30917
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | a | b | c1 | ø d1 | ø d3 | kg |
|---|---|---|---|---|---|---|
| 30917-0017-14 | M6 | 25 | variabel / variable | 17.2 | 13 | 0.0860 |
| 30917-0026-14 | M8 | 25 | variabel / variable | 26.9 | 18 | 0.1770 |
| 30917-0033-14 | M8 | 25 | variabel / variable | 33.7 | 18 | 0.1770 |
| 30917-0042-14 | M8 | 25 | variabel / variable | 42.4 | 18 | 0.1840 |
- Mounting element for Classic Webnet-Frames.
- For flat post profiles with widths ranging from 5 to 50 mm.
- The length C1 is freely selectable, maximum 50 mm.
- Delivery as a set including headless screw.
