Jakob Rope Systems

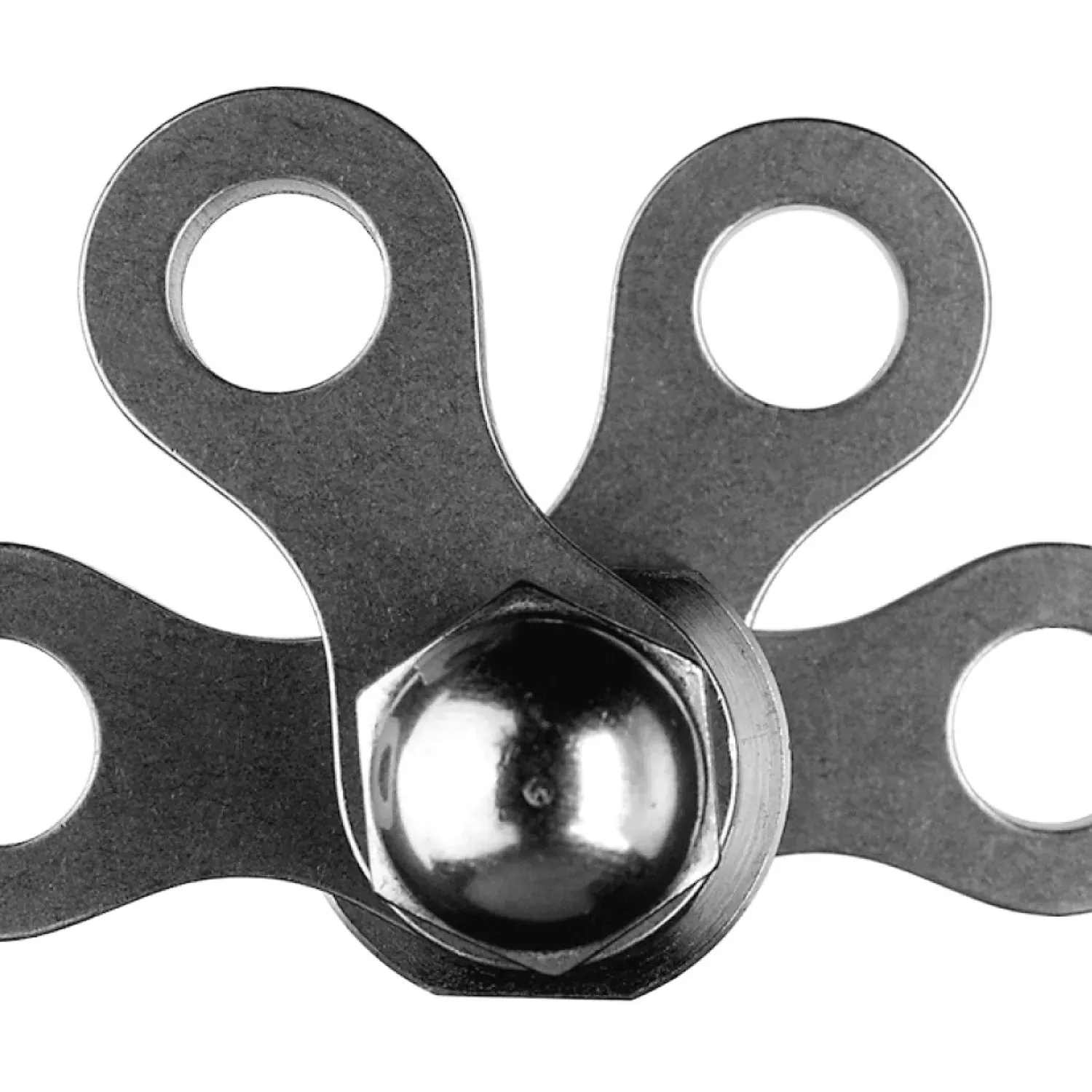

Fan rack Set with fan links
Supporting and additional parts by Jakob Rope Systems, stainless steel AISI 316L (1.4404). 1 size, article no. 30897-0008.
Price on request
- Marine-grade stainless steel for long service life
- Complete system: rope or rod, terminals and fixings from one range
- Load and tension design by 828 rope engineers
- Supply, swaging and installation by 828
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 30897-0008 |
| Category | Architectural Cables & Fittings |
| Product family | Supporting and additional parts |
| Material | Stainless steel 316L |
| Sizes available | 1 article number |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Architectural Ropes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 30897-0008
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | a | b1 | b2 | e | f | k | ø d1 | ø d2 | kg |
|---|---|---|---|---|---|---|---|---|---|
| 30897-0008 | M10 | 64 | 16 | 11.5 | 10 | 5 | 25 | 8.2 | 0.1990 |
- The supply includes 4 fan-link pieces and two dome nuts.
