Jakob Rope Systems

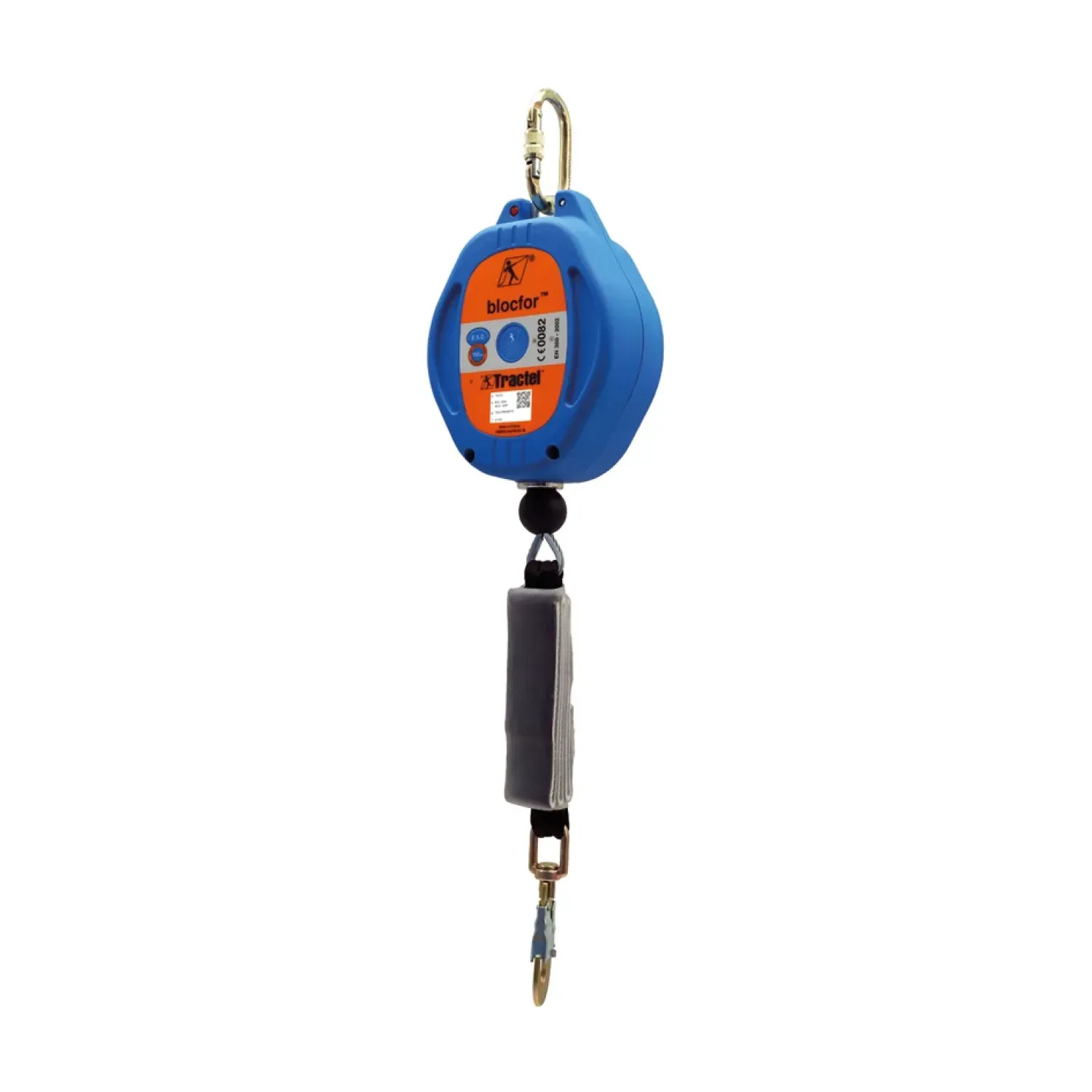

Fall protection device type Blocfor 10 ESD SR, Tractel
Self-retracting lifeline devices by Jakob Rope Systems. 2 sizes, article no. 5.320.010 to 5.320.220.
Price on request
- Short arrest distance and reduced fall clearance
- Matched to the anchor and lifeline it connects to
- User training and inspection available from 828
- Supplied with manufacturer certification
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 5.320.010 |
| Category | SRLs & Fall Arresters |
| Product family | Self-retracting lifeline devices |
| Standard | EN 360 |
| Sizes available | 2 article numbers |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Self-Retracting Lanyards (SRL) |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 5.320.010
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | L | kg |
|---|---|---|
| 5.320.010 | 10 | 4.7000 |
| 5.320.220 | 20 | 7.6500 |
- The ESD system ensures that the user does not experience an collecting force of more than 600 daN even when the device is fully extended
- The automatic retracting fall arrester can be used vertically or horizontally (for example on terraces), with edges up to a minimum radius of 0.5 mm
- Belt energy absorber ESD protected with transparent sheath
- Connector M10 and M47 with swivel joint and self-locking latch
- Incl. instruction manual
Customer Reviews
Be the First to Review.
Used this product on a project? Tell other buyers how it performed.
Need It Installed?
Self-Retracting Lanyards (SRL).
Self-retracting lanyards that pay out and retract with the worker, locking within a short distance if a fall occurs.
