Jakob Rope Systems

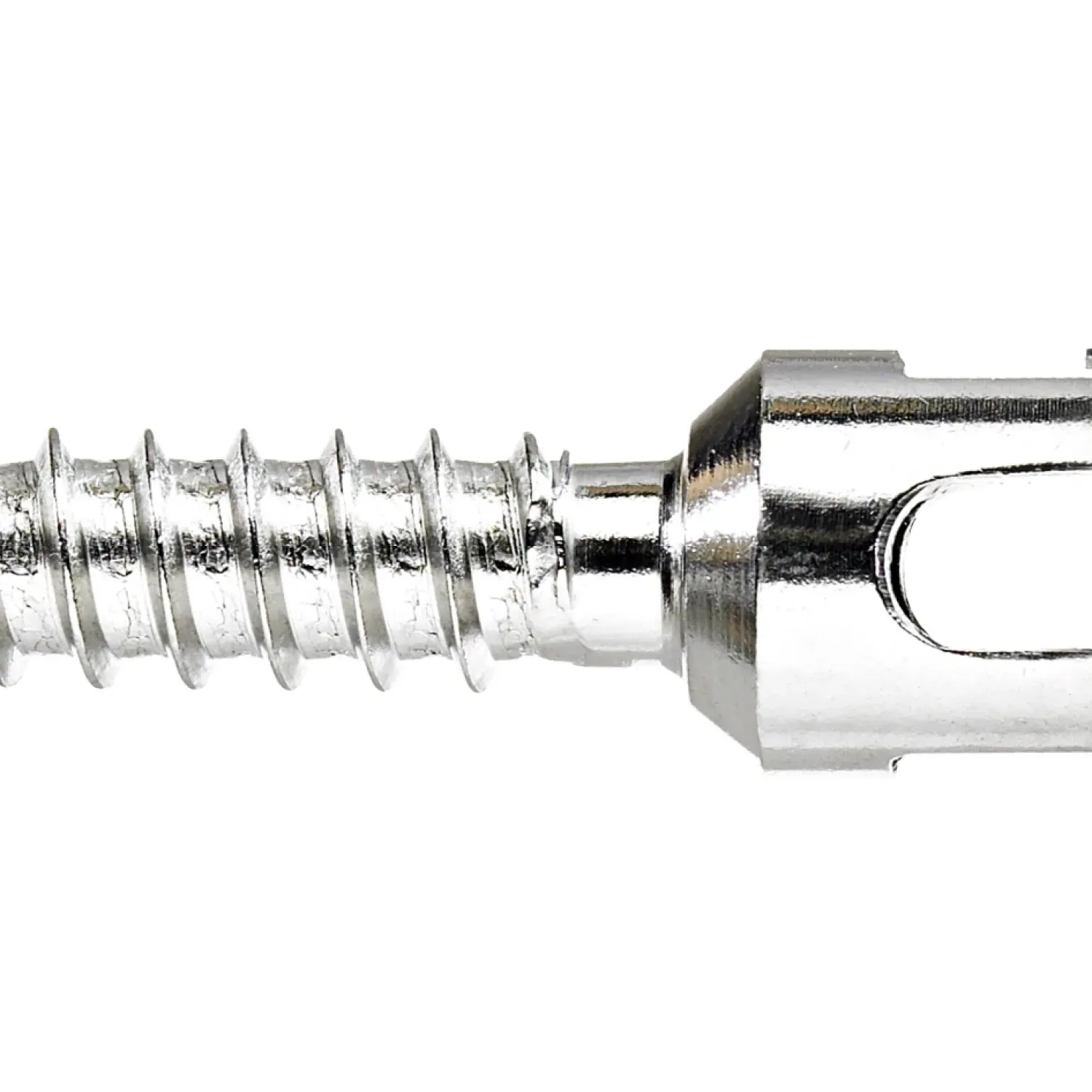

Eye-end counter piece with wood-thread
Clevis with thread by Jakob Rope Systems, stainless steel AISI 316L (1.4404). 1 size, article no. 30887-0800-01.
Price on request
- Marine-grade stainless steel for long service life
- Complete system: rope or rod, terminals and fixings from one range
- Load and tension design by 828 rope engineers
- Supply, swaging and installation by 828
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 30887-0800-01 |
| Category | Architectural Cables & Fittings |
| Product family | Clevis with thread |
| Material | Stainless steel 316L |
| Sizes available | 1 article number |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Architectural Ropes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 30887-0800-01
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | a | b | c | e | f | g | ø d1 | ø d2 | kg |
|---|---|---|---|---|---|---|---|---|---|
| 30887-0800-01 | 8 | 52 | 30 | 6 | 6.5 | 5 | 5 | 13 | 0.0210 |
- For mounting in wood.
- Compatible with Eye-ends with internal thread 30806-0500 and 30807-0500.
- Compatible with Eye-ends 30885-0500, 30885-0600, 30885-0800, and 30886-0500, 30886-0600, 30886-0800
