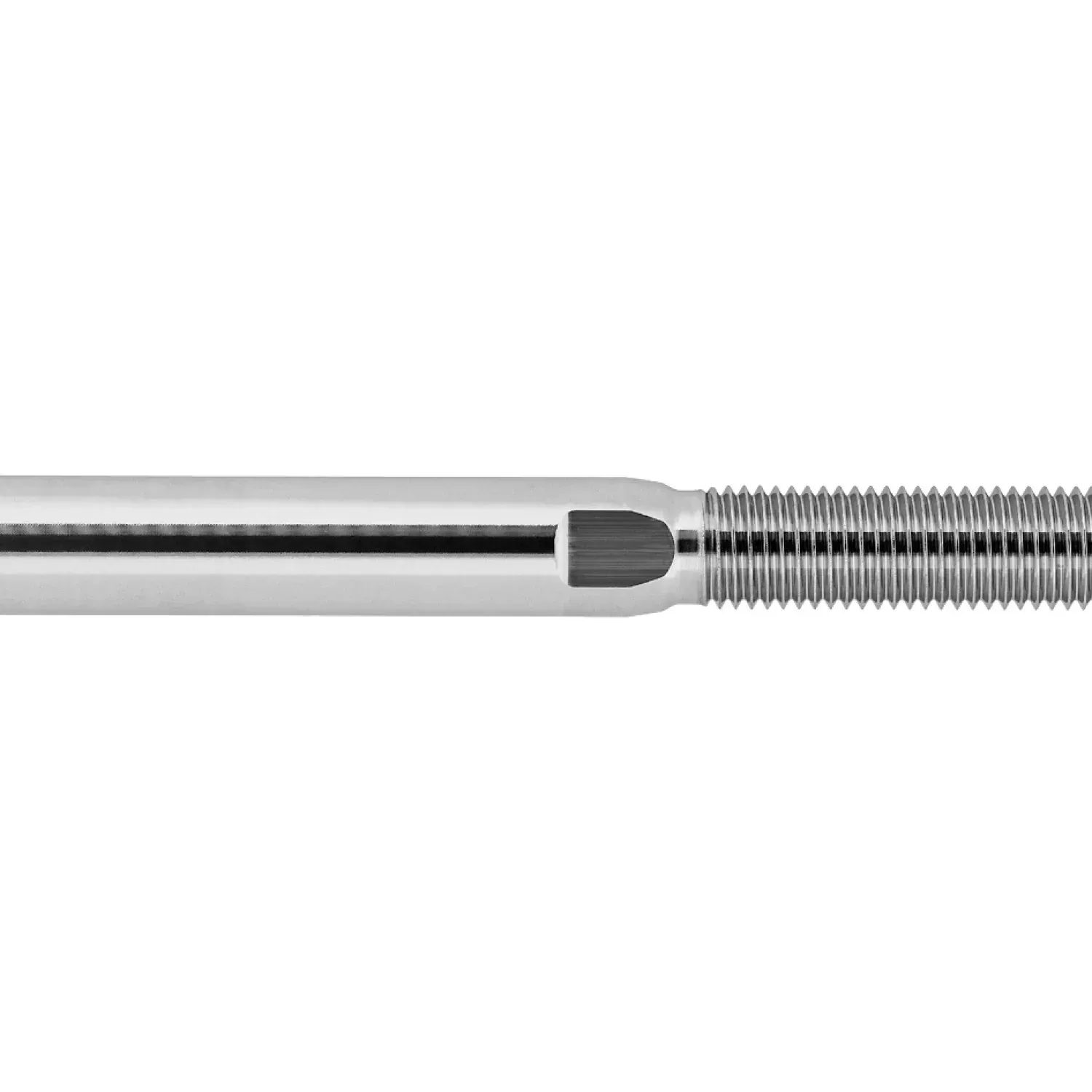

External thread end left-hand Forte round swaged
External threads by Jakob Rope Systems, stainless steel AISI 316L (1.4404). 8 sizes, article no. 32855-0800-01 to 32855-2600-01.
Price on request
- Marine-grade stainless steel for long service life
- Complete system: rope or rod, terminals and fixings from one range
- Load and tension design by 828 rope engineers
- Supply, swaging and installation by 828
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 32855 |
| Category | Architectural Cables & Fittings |
| Product family | External threads |
| Material | Stainless steel 316L |
| Sizes available | 8 article numbers |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Architectural Ropes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 32855
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | ø | a | b | c | ø d | sw | F_Rd kN ETA | x min | kg |
|---|---|---|---|---|---|---|---|---|---|
| 32855-0800-01 | 8 | M12 | 175 | 80 | 16.1 | 9 | 30.6 | 400 | 0.1600 |
| 32855-1000-01 | 10 | M16 | 205 | 90 | 17.9 | 12 | 47.9 | 500 | 0.2620 |
| 32855-1200-01 | 12 | M20 | 235 | 100 | 21.4 | 15 | 69 | 600 | 0.4530 |
| 32855-1400-01 | 14 | M24 | 282 | 120 | 25 | 18 | 94 | 700 | 0.7760 |
| 32855-1600-01 | 16 | M24 | 300 | 120 | 28.2 | 18 | 122.4 | 800 | 0.9200 |
| 32855-1900-01 | 19 | M30 | 362 | 150 | 34.5 | 23 | 172.8 | 950 | 1.7700 |
| 32855-2200-01 | 22 | M30 | 390 | 150 | 40.5 | 23 | 231.4 | 1100 | 2.2850 |
| 32855-2600-01 | 26 | M36 | 420 | 160 | 46 | 28 | 315.5 | 1300 | 3.3000 |
- Only for use with open spiral strand of the 10810 series.
- The free rope length between the fittings must be at least 50 times the rope diameter.
- Please refer to the technical notes in the brochure Forte.
