Jakob Rope Systems

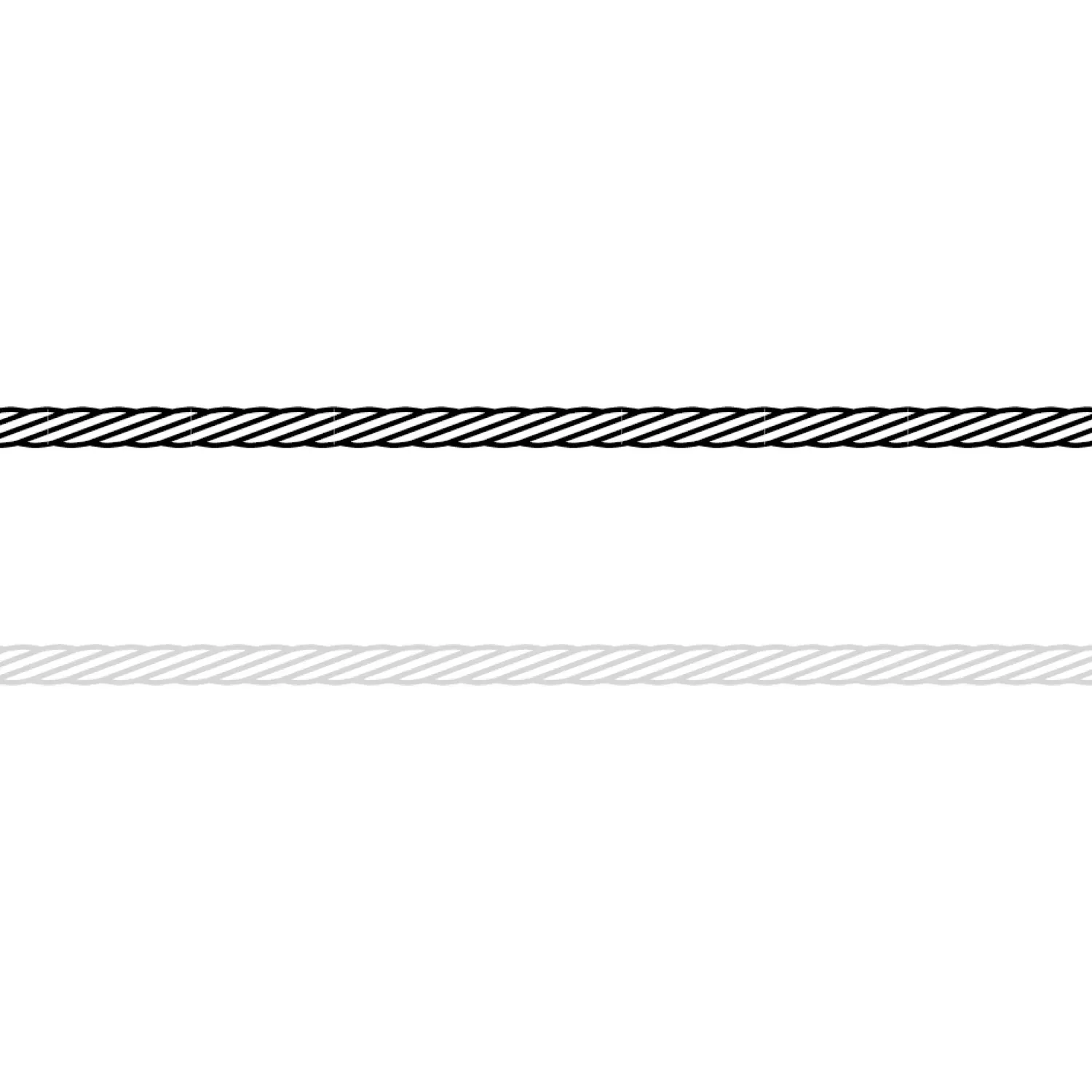

Endless cable-laid grommet
Endless cable-laid grommets by Jakob Rope Systems, steel wire. 51 sizes, article no. 20113-0600-010 to 20113-3900-050.
Price on request
- Rated ropes, chains and slings with documented working loads
- Terminations and accessories matched to the rope
- Rigging and lifting design by 828 engineers
- Inspection, load testing and certification available
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 20113 |
| Category | Wire Rope, Chain & Rigging |
| Product family | Endless cable-laid grommets |
| Material | Steel |
| Surface | galvanized |
| Standard | EN 13414-3 |
| Nominal strength | 1960 N/mm2 |
| Sizes available | 51 article numbers |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Overhead, Gantry & Jib Cranes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 20113
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | ø | L | WLL kN | kg |
|---|---|---|---|---|
| 20113-0600-010 | 6 | 0.5 | 5.6 | - |
| 20113-0600-020 | 6 | 1 | 5.6 | - |
| 20113-0600-030 | 6 | 1.5 | 5.6 | - |
| 20113-0600-040 | 6 | 2 | 5.6 | - |
| 20113-0600-050 | 6 | 2.5 | 5.6 | - |
| 20113-0900-010 | 9 | 0.5 | 12.6 | - |
| 20113-0900-020 | 9 | 1 | 12.6 | 0.4700 |
| 20113-0900-030 | 9 | 1.5 | 12.6 | 0.7000 |
| 20113-0900-040 | 9 | 2 | 12.6 | 0.9300 |
| 20113-0900-050 | 9 | 2.5 | 12.6 | - |
| 20113-1200-010 | 12 | 0.5 | 22.45 | - |
| 20113-1200-020 | 12 | 1 | 22.45 | 0.8300 |
| 20113-1200-030 | 12 | 1.5 | 22.45 | - |
| 20113-1200-040 | 12 | 2 | 22.45 | 1.6600 |
| 20113-1200-050 | 12 | 2.5 | 22.45 | - |
| 20113-1500-010 | 15 | 0.5 | 35.2 | - |
| 20113-1500-020 | 15 | 1 | 35.2 | 1.3000 |
| 20113-1500-030 | 15 | 1.5 | 35.2 | 1.9500 |
| 20113-1500-040 | 15 | 2 | 35.2 | - |
| 20113-1500-050 | 15 | 2.5 | 35.2 | - |
| 20113-1800-010 | 18 | 0.5 | 50.3 | - |
| 20113-1800-020 | 18 | 1 | 50.3 | - |
| 20113-1800-030 | 18 | 1.5 | 50.3 | - |
| 20113-1800-040 | 18 | 2 | 50.3 | 3.7400 |
| 20113-1800-050 | 18 | 2.5 | 50.3 | - |
| 20113-2100-020 | 21 | 1 | 68.43 | - |
| 20113-2100-030 | 21 | 1.5 | 68.43 | - |
| 20113-2100-040 | 21 | 2 | 68.43 | - |
| 20113-2100-050 | 21 | 2.5 | 68.43 | - |
| 20113-2400-020 | 24 | 1 | 89.41 | - |
| 20113-2400-030 | 24 | 1.5 | 89.41 | - |
| 20113-2400-040 | 24 | 2 | 89.41 | - |
| 20113-2400-050 | 24 | 2.5 | 89.41 | - |
| 20113-2700-020 | 27 | 1 | 113 | - |
| 20113-2700-030 | 27 | 1.5 | 113 | - |
| 20113-2700-040 | 27 | 2 | 113 | - |
| 20113-2700-050 | 27 | 2.5 | 113 | - |
| 20113-3000-020 | 30 | 1 | 140 | - |
| 20113-3000-030 | 30 | 1.5 | 140 | - |
| 20113-3000-040 | 30 | 2 | 140 | - |
| 20113-3000-050 | 30 | 2.5 | 140 | - |
| 20113-3300-020 | 33 | 1 | 169 | - |
| 20113-3300-030 | 33 | 1.5 | 169 | - |
| 20113-3300-040 | 33 | 2 | 169 | - |
| 20113-3300-050 | 33 | 2.5 | 169 | - |
| 20113-3600-030 | 36 | 1.5 | 201 | - |
| 20113-3600-040 | 36 | 2 | 201 | - |
| 20113-3600-050 | 36 | 2.5 | 201 | - |
| 20113-3900-030 | 39 | 1.5 | 235 | - |
| 20113-3900-040 | 39 | 2 | 235 | - |
| 20113-3900-050 | 39 | 2.5 | 235 | - |
- Of galvanized, single-layer round strand ropes with fiber core, safety factor 5
- Working length = Rope center
- Working load limit see also table comply with EN 13414-3
