Jakob Rope Systems

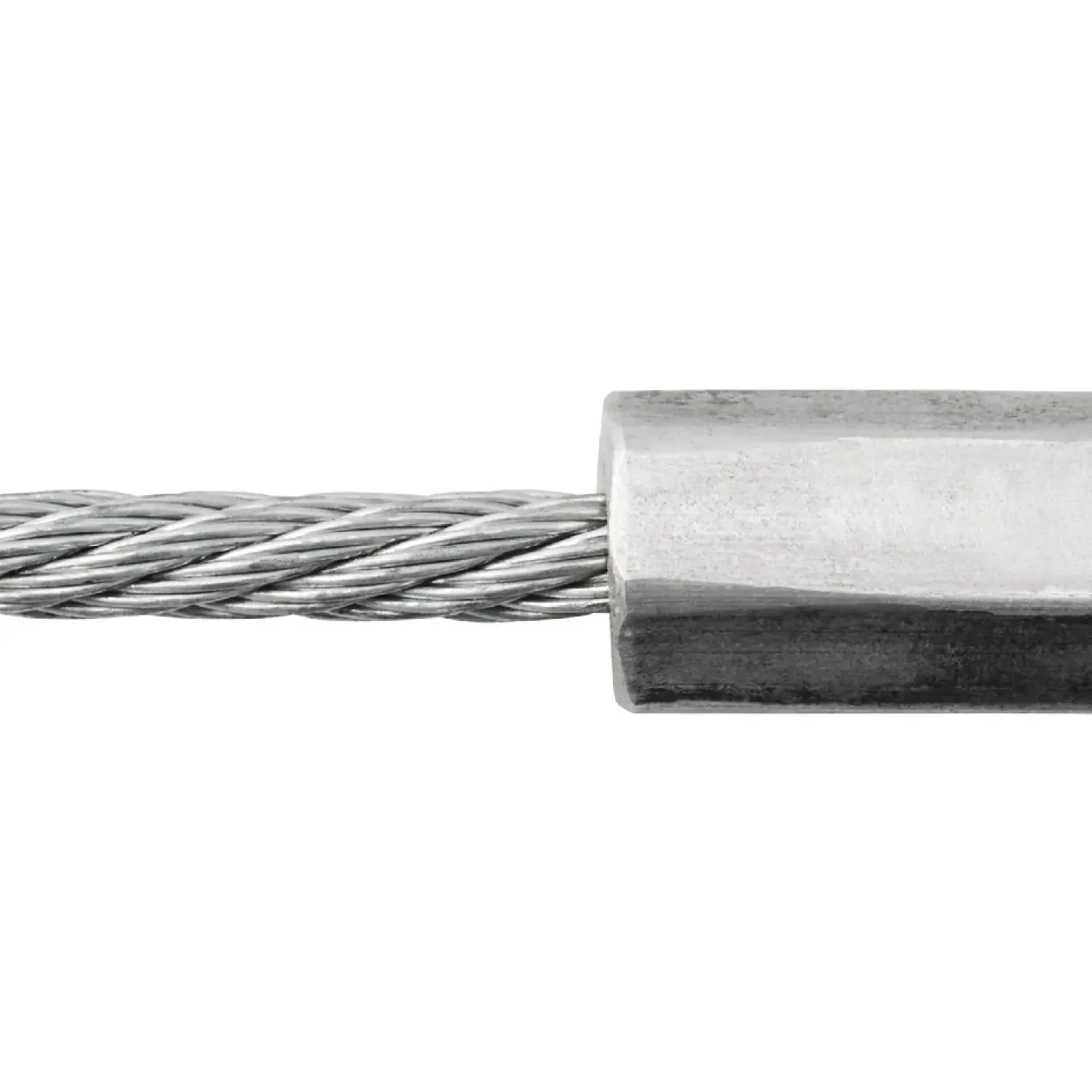

End-stop aluminum hexagonal swaged
End stops assembled by Jakob Rope Systems, AL. 12 sizes, article no. 30566-0100-0506 to 30566-0400-0916.
Price on request
- Marine-grade stainless steel for long service life
- Complete system: rope or rod, terminals and fixings from one range
- Load and tension design by 828 rope engineers
- Supply, swaging and installation by 828
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 30566 |
| Category | Architectural Cables & Fittings |
| Product family | End stops assembled |
| Material | Aluminium |
| Sizes available | 12 article numbers |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Architectural Ropes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 30566
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | ø | b | ø d | kg |
|---|---|---|---|---|
| 30566-0100-0506 | 1 | 7 | 5 | 0.0003 |
| 30566-0100-2757 | 1 | 6.4 | 2.5 | 0.0051 |
| 30566-0150-0404 | 1.5 | 4.6 | 4 | 0.0001 |
| 30566-0150-0406 | 1.5 | 6.9 | 4 | 0.0002 |
| 30566-0150-0506 | 1.5 | 7 | 5 | 0.0003 |
| 30566-0150-0606 | 1.5 | 7.2 | 6 | 0.0004 |
| 30566-0200-0506 | 2 | 7 | 5 | 0.0002 |
| 30566-0200-0606 | 2 | 7.2 | 6 | 0.0004 |
| 30566-0300-0807 | 3 | 8.3 | 8 | 0.0008 |
| 30566-0300-0816 | 3 | 17.2 | 8 | 0.0018 |
| 30566-0400-0816 | 4 | 17.8 | 8 | 0.0016 |
| 30566-0400-0916 | 4 | 18.5 | 9 | 0.0021 |
- Suitable for circular wire strand ropes of the 6 × 7 + WC and 6 × 19 + WC series.
