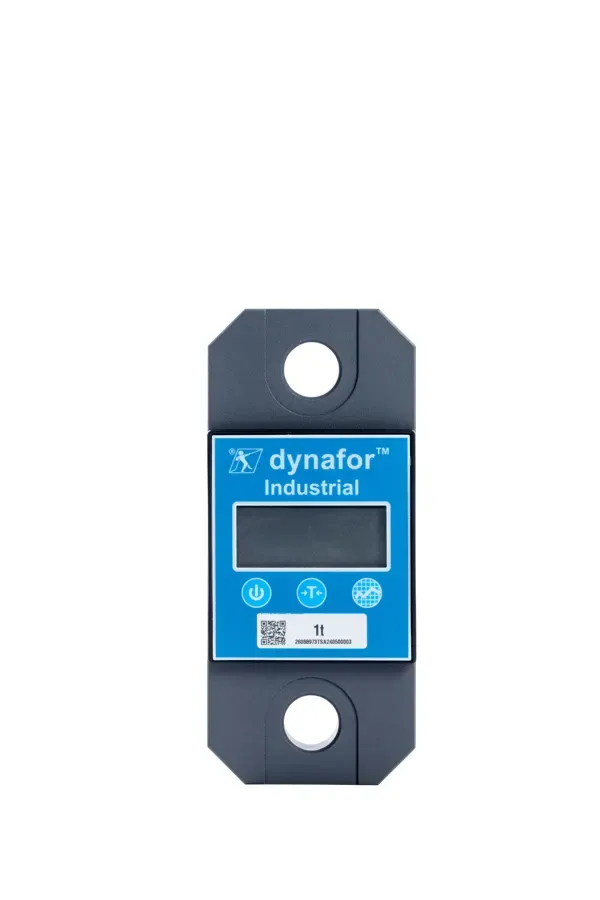

Dynafor Industrial
Digital load indicator with its own built-in display: quick, accurate load readings from 1 t to 20 t, with tare, peak hold and kg / daN / lbs at the press of a button.
Price on request
- For controlled lifting, pulling and load monitoring
- Selected to your loads and duty
- Installation and integration by 828
- Inspection, load testing and certification available
| Brand | Tractel |
|---|---|
| Product no. | On request |
| Category | Lifting & Load Measurement |
| Product family | Dynafor |
| Capacity range | 1 t to 20 t (five models) |
| Accuracy | ±0.3% of full scale at 21 °C |
| Display | Built-in, 18 mm digits; kg, daN or lbs |
| Functions | Tare, peak hold, auto-zero, unit selection, on/off |
| Sensor | Strain gauge |
| Peak-hold sampling | 3 Hz to 32 Hz |
| Protection | IP65 |
| Power | 2 × AAA batteries, about 250 hours |
| Safety factor | 4:1 minimum |
| Sizes available | 6 article numbers |
| Manufacturer origin | Luxembourg · part of Alimak Group |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Overhead, Gantry & Jib Cranes |
The Tractel Dynafor Industrial measures load and line tension directly, and shows the reading on its own built-in display, so there is no handset, cable or phone app to set up. A strain-gauge sensor keeps readings within 0.3% of full scale, which lets riggers confirm a weight before a lift, check rigging tension or run simple pull and proof tests on site.
Why crews use it
- Built-in display with 18 mm digits, updated in real time
- Tare, peak hold and auto-zero functions
- Switch between kg, daN and lbs
- IP65 housing for dusty and wet site conditions
- About 250 hours of use on two AAA batteries
- Peak-hold sampling from 3 Hz up to 32 Hz
- Minimum 4:1 safety factor
- Connects with Tractel bow shackles and swivel hooks for Dynafor
Typical uses
- Weighing and load checks before overhead lifts
- Measuring towing and pulling forces
- Load testing anchors, rigging and lifting gear
- Routine safety checks in construction, logistics, utilities and maintenance
Choosing a capacity
Pick the model whose working load limit covers your heaviest load, then add the matching Tractel bow shackles or swivel hooks for that capacity. Tell us the load and how you will rig it, and 828 will recommend the right model and shackle set.
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| Code | Model | W.L.L. (t) | Accuracy (± kg) | Resolution (kg) | Weight (kg) |
|---|---|---|---|---|---|
| 260889 | Industrial 1T | 1 | 3 | 1 | 0.75 |
| 260899 | Industrial 3.2T | 3.2 | 9.6 | 2 | 0.93 |
| 260909 | Industrial 6.3T | 6.3 | 18.9 | 5 | 1.44 |
| 260919 | Industrial 12.5T | 12.5 | 37.5 | 10 | 3.22 |
| 260929 | Industrial 20T | 20 | 60 | 20 | 4.95 |
| 281097 | Option: time-off suppression | – | – | – | – |
- Matching Tractel bow shackles for Dynafor: 0.5–3.2 t (47916), 5–6.5 t (47926), 10–13.5 t (47936), 20–25 t (47946). Swivel hooks for Dynafor are also available.
