Jakob Rope Systems

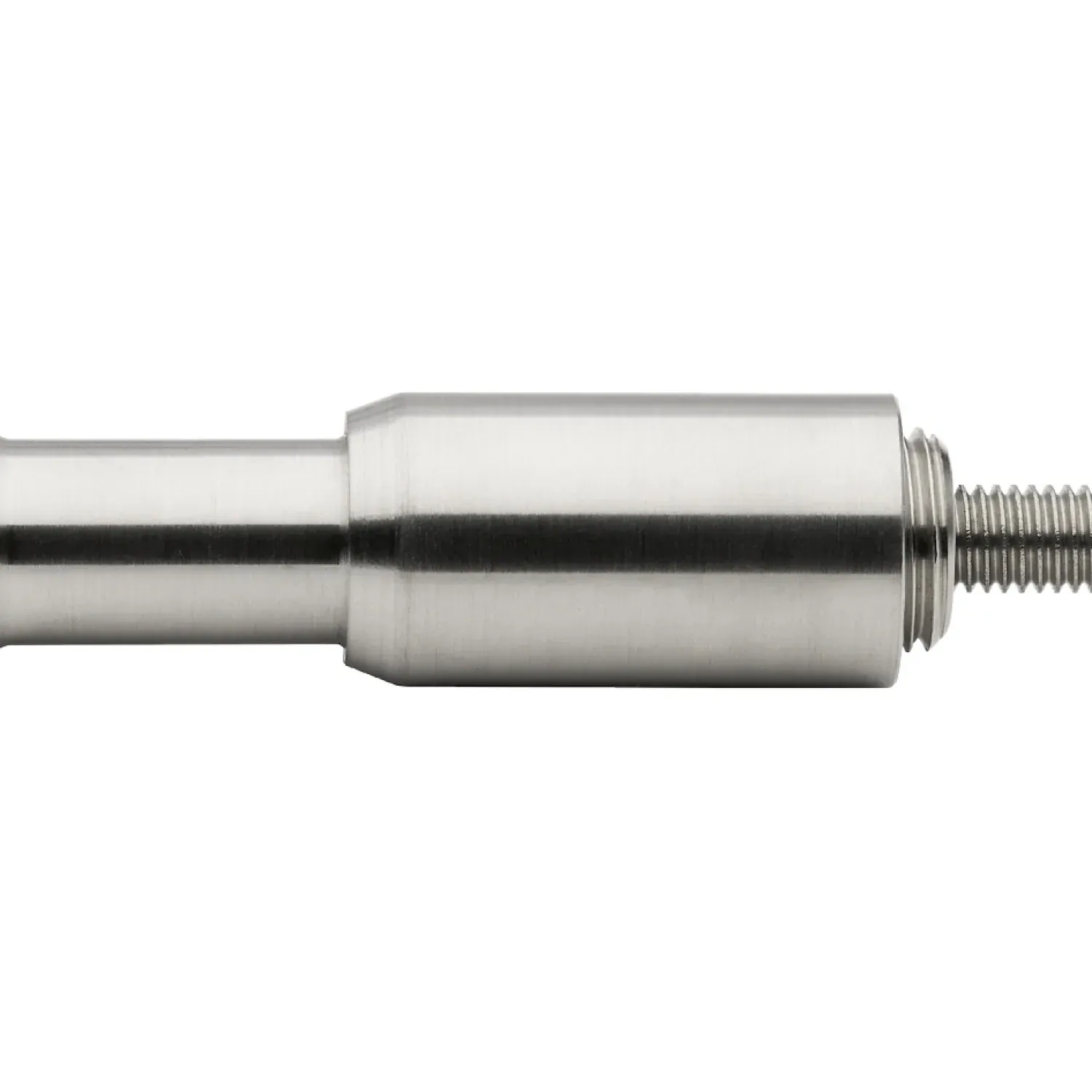

Distance adjuster one-way
Frame holders and Frame clamps by Jakob Rope Systems, stainless steel AISI 316L (1.4404). 1 size, article no. 30917-1001-00.
Price on request
- Transparent, durable stainless steel mesh and frame systems
- For balustrades, enclosures, aviaries and green walls
- Layout and edge-detail design by 828
- Supply and tensioned installation by 828
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 30917-1001-00 |
| Category | Webnet, Frames & Green Facades |
| Product family | Frame holders and Frame clamps |
| Material | Stainless steel 316L |
| Sizes available | 1 article number |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Webnet |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 30917-1001-00
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | a | b1 min | b1 max | b2 | c | ø d1 | ø d2 | - | + | kg |
|---|---|---|---|---|---|---|---|---|---|---|
| 30917-1001-00 | M8 | 40 | 70 | 30 | 12 | 16 | 20 | 15 | 15 | 0.1480 |
- Item of ModularRailing. Mounting element for Webnet-Frames, Inviss-C, profile width 30 mm.
- Adjustable length 40 - 70 mm.
- Delivery with screw, suitable for 12 mm posts. Other screws available upon request.
- Please refer to the instructions in the ModularRailing brochure and assembly manual.
