Jakob Rope Systems

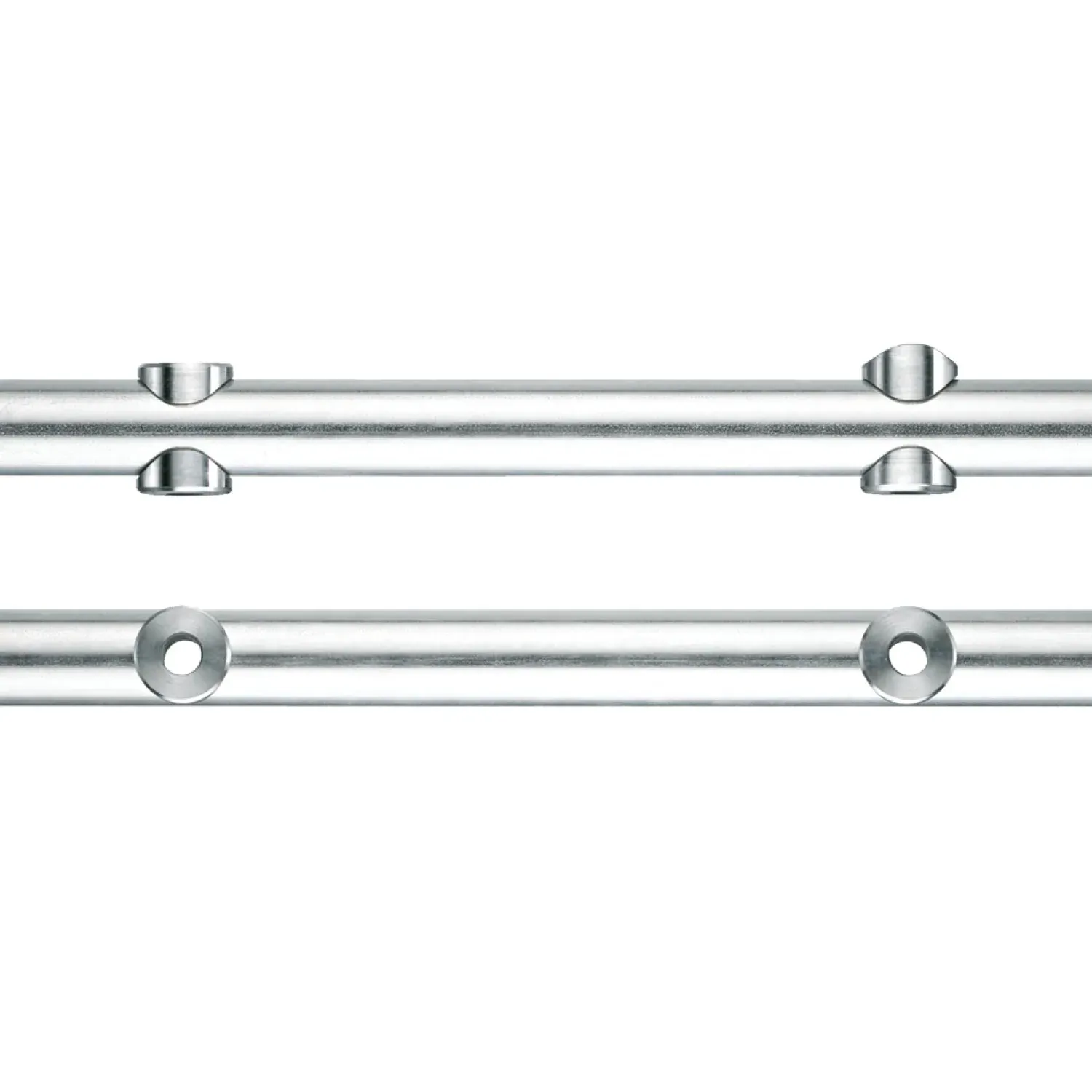

Connecting rod
Rod and connecting rod by Jakob Rope Systems, stainless steel AISI 316L (1.4404). 4 sizes, article no. 30921-0800-20 to 30921-1000-21.
Price on request
- Marine-grade stainless steel for long service life
- Complete system: rope or rod, terminals and fixings from one range
- Load and tension design by 828 rope engineers
- Supply, swaging and installation by 828
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 30921 |
| Category | Architectural Cables & Fittings |
| Product family | Rod and connecting rod |
| Material | Stainless steel 316L |
| Sizes available | 4 article numbers |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Architectural Ropes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 30921
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | f | k | ø d1 | ø d2 | ø d3 | ø d4 | kg |
|---|---|---|---|---|---|---|---|
| 30921-0800-20 | Für flache Pfostenprofile | 3 | 8.5 | 8.5 | 20 | 20 | 0.0040 |
| 30921-0800-21 | Mit Formanschlüssen für runde Pfostenprofile | 3 | 8.5 | 8.5 | 20 | 20 | 0.0040 |
| 30921-1000-20 | Für flache Pfostenprofile | 3 | 10.5 | 10.5 | 20 | 20 | 0.0040 |
| 30921-1000-21 | Mit Formanschlüssen für runde Pfostenprofile | 3 | 10.5 | 10.5 | 20 | 20 | 0.0040 |
- Manufactured according to drilling plan, see dimensions b1, b2, b3, b4 and b6.
- Round post profiles: specification of the post diameter is required.
- Price including machining, valid for lengths (b1) from 800 to 1200 mm.
- Delivery includes 4 holes and 8 form connections.
