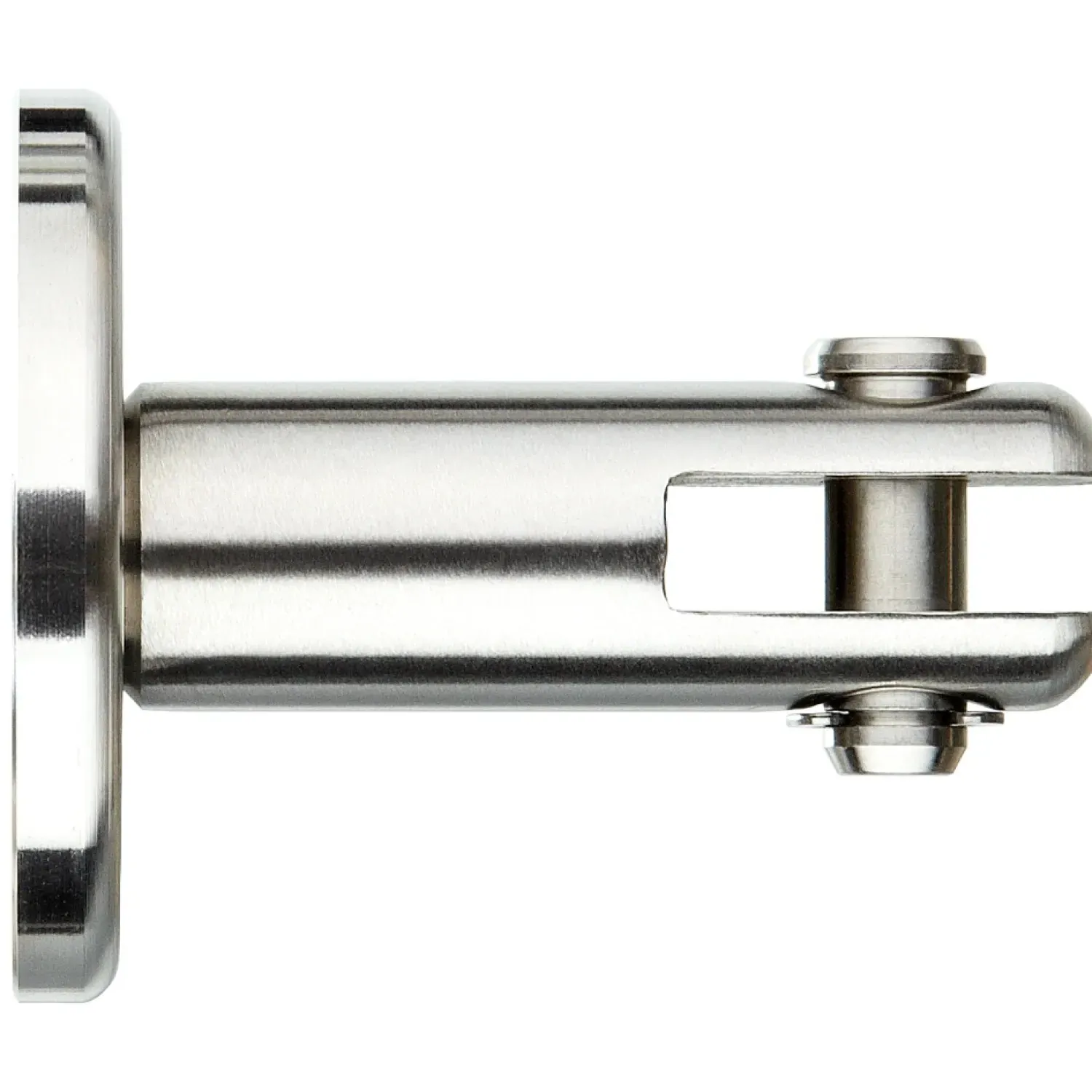

Clevis with support washer and countersunk holes
Supporting parts by Jakob Rope Systems, stainless steel AISI 316L (1.4404). 1 size, article no. 30836-1048-03.
Price on request
- Marine-grade stainless steel for long service life
- Complete system: rope or rod, terminals and fixings from one range
- Load and tension design by 828 rope engineers
- Supply, swaging and installation by 828
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 30836-1048-03 |
| Category | Architectural Cables & Fittings |
| Product family | Supporting parts |
| Material | Stainless steel 316L |
| Sizes available | 1 article number |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Architectural Ropes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 30836-1048-03
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | b | e | f | g | k | ø d1 | ø d2 | ø d3 | ø d4 | ø d5 | kg |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 30836-1048-03 | 48 | 12 | 12.5 | 7 | 6 | 50 | 18 | 8 | 34 | 5.2 | 0.1710 |
- Assembly consisting of multiple components, delivered unassembled.
- The items are also available individually.
