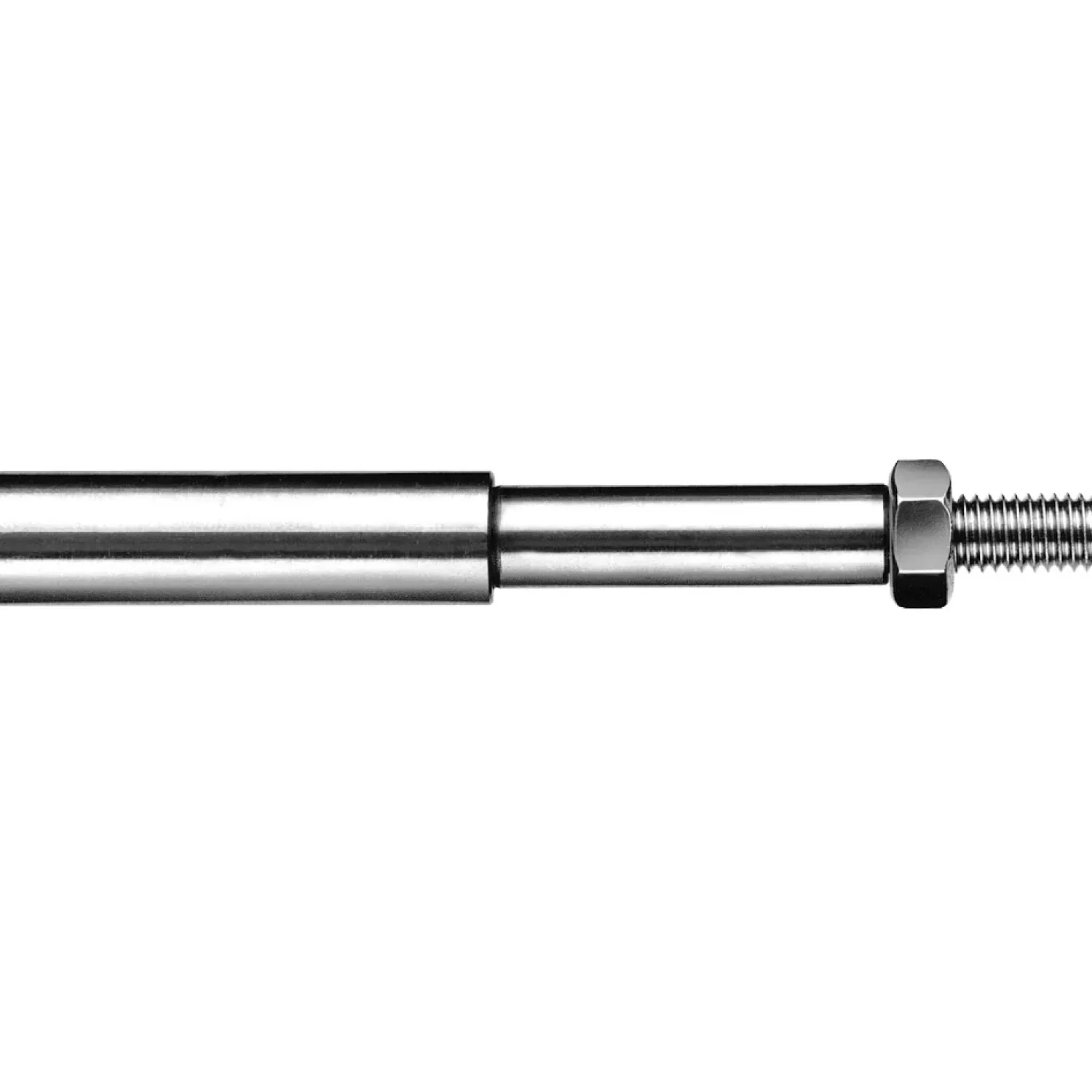

Clevis and internal thread end swivel swaged
Clevis with internal thread swaged by Jakob Rope Systems, stainless steel AISI 316L (1.4404). 8 sizes, article no. 30823-0300-01 to 30823-0600-02.
Price on request
- Marine-grade stainless steel for long service life
- Complete system: rope or rod, terminals and fixings from one range
- Load and tension design by 828 rope engineers
- Supply, swaging and installation by 828
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 30823 |
| Category | Architectural Cables & Fittings |
| Product family | Clevis with internal thread swaged |
| Material | Stainless steel 316L |
| Sizes available | 8 article numbers |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Architectural Ropes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 30823
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | Status | ø | a | b | e | f | g | h | ø d1 | ø d2 | sw | - | + | kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30823-0300-01 | Phased out | 3 | M5 | 122 | 6 | 12 | 7.5 | 12.5 | 5 | 10 | 8 | 10 | 3 | 0.0580 |
| 30823-0300-02 | Phased out | 3 | M5 | 139 | 6 | 12 | 7.5 | 12.5 | 5 | 10 | 8 | 15 | 13 | 0.0650 |
| 30823-0400-01 | Phased out | 4 | M6 | 121 | 6 | 12 | 7.5 | 12.5 | 5 | 10 | 8 | 8 | 3 | 0.0540 |
| 30823-0400-02 | Phased out | 4 | M6 | 146 | 6 | 12 | 7.5 | 12.5 | 5 | 10 | 8 | 15 | 11 | 0.0630 |
| 30823-0500-01 | Phased out | 5 | M6 | 143 | 6 | 12 | 7.5 | 12.5 | 5 | 13 | 11 | 8 | 3 | 0.0950 |
| 30823-0500-02 | Phased out | 5 | M6 | 167 | 6 | 12 | 7.5 | 12.5 | 5 | 13 | 11 | 15 | 11 | 0.1060 |
| 30823-0600-01 | Phased out | 6 | M8 | 152 | 7 | 13 | 10 | 14.5 | 6 | 13 | 11 | 10 | 3 | 0.1070 |
| 30823-0600-02 | Phased out | 6 | M8 | 189 | 7 | 13 | 10 | 14.5 | 6 | 13 | 11 | 25 | 13 | 0.1240 |
- The clevis and rope can rotate freely. The rope can be tensioned by using right-hand threads on both sides.
- The functionality is ensured only by using circular wire strand ropes of the 10820 and 10830 series.
- The screw-in depth of the thread must be at least 1.5 times the thread diameter.
- (+) = extend (loosen)
- (-) = shorten (tension)
