Jakob Rope Systems

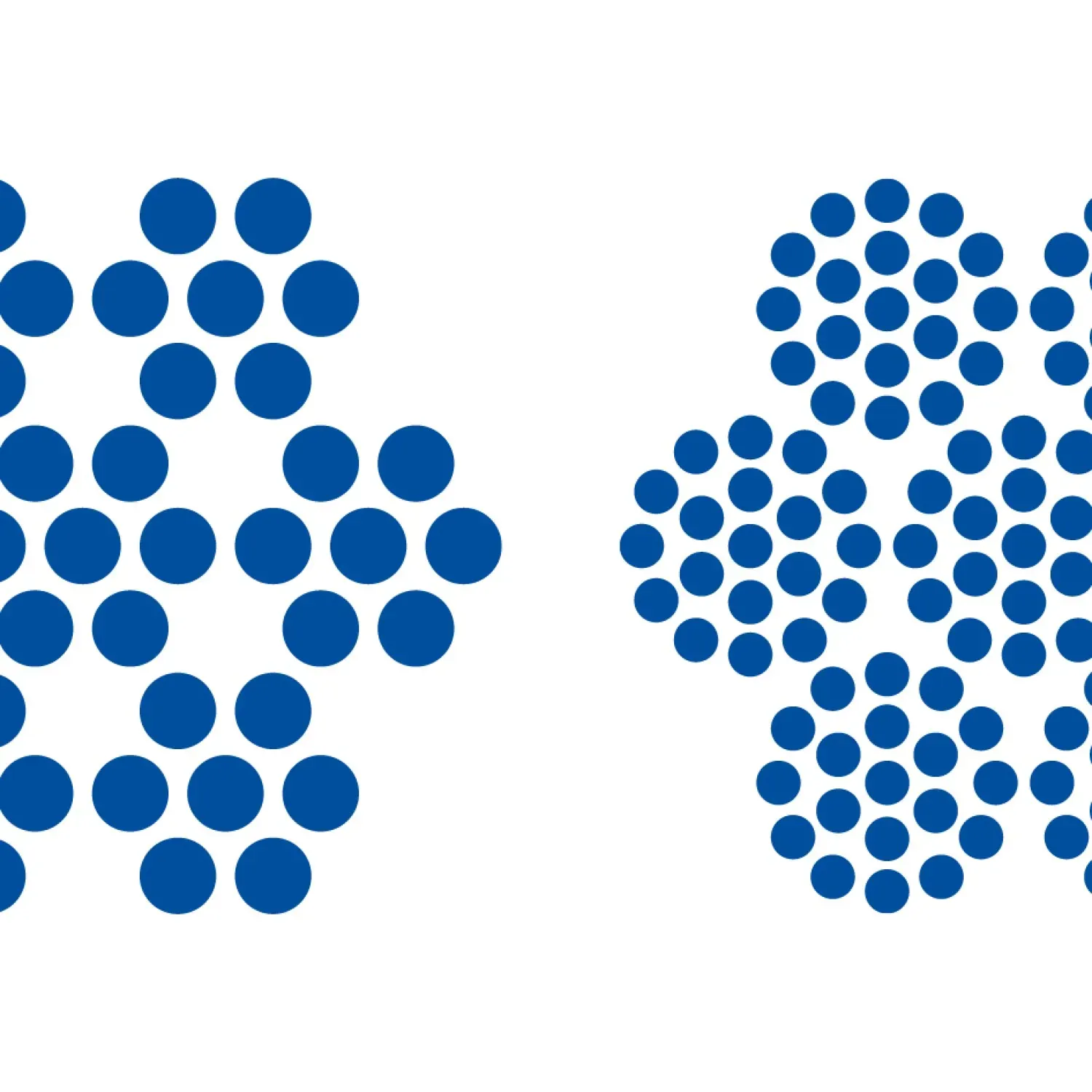

Circular wire strand rope black 6 x 7 + WC / 6 x 19 + WC
Standard wire ropes by Jakob Rope Systems, steel wire. 7 sizes, article no. 10130-0150-02 to 10180-0800-02.
Price on request
- Rated ropes, chains and slings with documented working loads
- Terminations and accessories matched to the rope
- Rigging and lifting design by 828 engineers
- Inspection, load testing and certification available
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 10130-0150-02 |
| Category | Wire Rope, Chain & Rigging |
| Product family | Standard wire ropes |
| Material | Steel |
| Surface | surface coated, galvanized |
| Standard | EN 12385 |
| Color | black |
| Sizes available | 7 article numbers |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Overhead, Gantry & Jib Cranes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 10130-0150-02
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | Color | ø | Constr | MBL kN | kg | Nominal strength (Mat. strength) |
|---|---|---|---|---|---|---|
| 10130-0150-02 | 1.5 | 6 x 7 + WC | 1.4 | 0.0090 | 1960 N/mm2 | |
| 10130-0200-02 | 2 | 6 x 7 + WC | 2.5 | 0.0150 | ||
| 10180-0300-02 | 3 | 6 x 19 + WC | 5.8 | 0.0340 | 1960 N/mm2 | |
| 10180-0400-02 | 4 | 6 x 19 + WC | 10.3 | 0.0600 | 1960 N/mm2 | |
| 10180-0500-02 | 5 | 6 x 19 + WC | 16 | 0.0950 | 1960 N/mm2 | |
| 10180-0600-02 | 6 | 6 x 19 + WC | 23.1 | 0.1380 | 1960 N/mm2 | |
| 10180-0800-02 | 8 | 6 x 19 + WC | 41 | 0.2430 | 1960 N/mm2 |
- For stage rigging and architecture, not suitable for outdoor applications
