Jakob Rope Systems

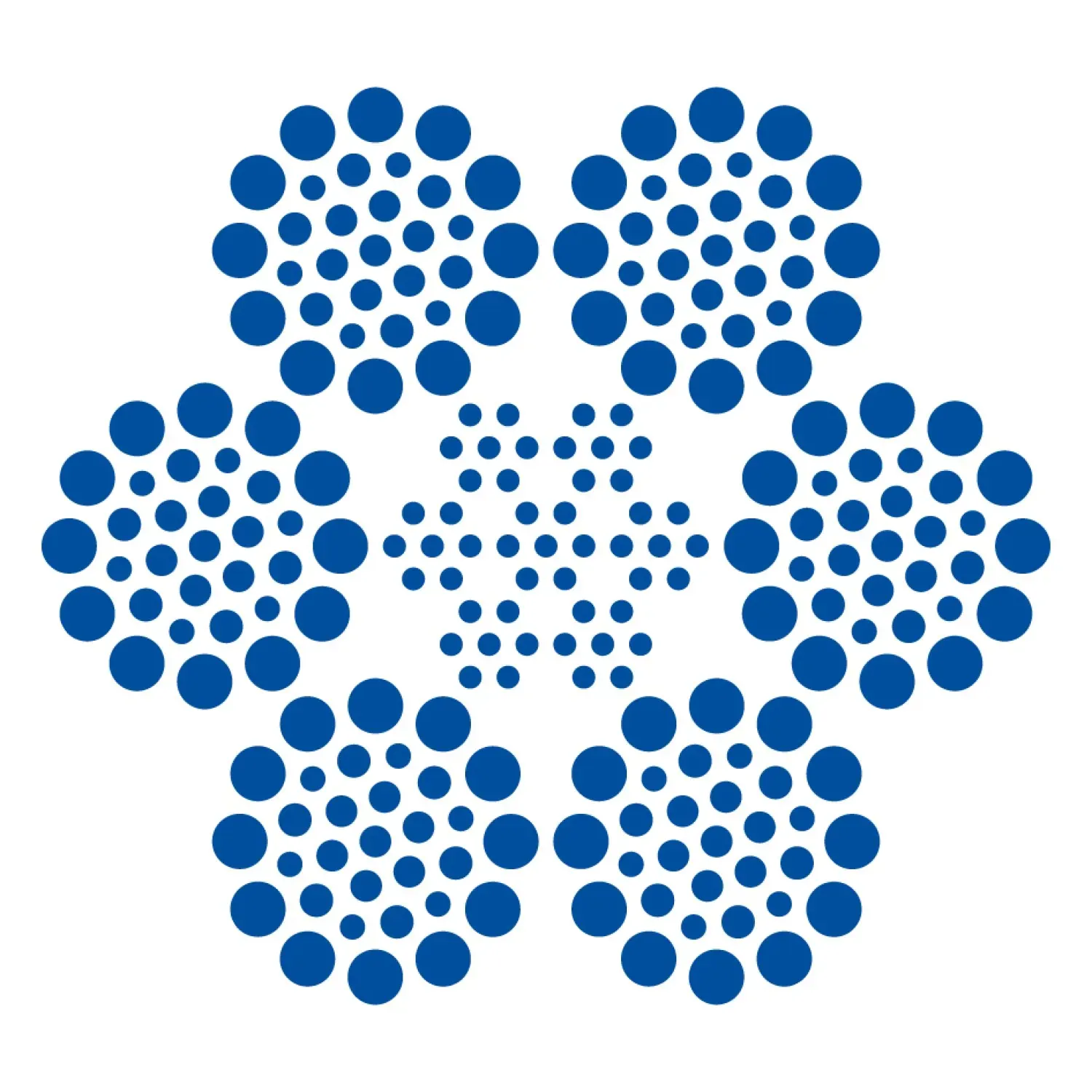

Circular wire strand rope 6 x 31 DQS + WC
Forest ropes by Jakob Rope Systems, steel wire. 10 sizes, article no. 10270-1100 to 10271-2200.
Price on request
- Rated ropes, chains and slings with documented working loads
- Terminations and accessories matched to the rope
- Rigging and lifting design by 828 engineers
- Inspection, load testing and certification available
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 10270-1100 |
| Category | Wire Rope, Chain & Rigging |
| Product family | Forest ropes |
| Material | Steel |
| Surface | galvanized |
| Standard | EN 12385 |
| Nominal strength | 1960 N/mm2 |
| Sizes available | 10 article numbers |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Overhead, Gantry & Jib Cranes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 10270-1100
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | ø | Constr | MBL kN | kg |
|---|---|---|---|---|
| 10270-1100 | 11 | 6 x 31 DQS + WC | 89 | 0.4900 |
| 10270-1200 | 12 | 6 x 31 DQS + WC | 104 | 0.5700 |
| 10270-1300 | 13 | 6 x 31 DQS + WC | 116 | 0.6400 |
| 10270-1400 | 14 | 6 x 31 DQS + WC | 134 | 0.7300 |
| 10270-1500 | 15 | 6 x 31 DQS + WC | 154 | 0.8300 |
| 10270-1600 | 16 | 6 x 31 DQS + WC | 173 | 0.9300 |
| 10270-1800 | 18 | 6 x 31 DQS + WC | 224 | 1.2100 |
| 10270-1900 | 19 | 6 x 31 DQS + WC | 247 | 1.3300 |
| 10270-2000 | 20 | 6 x 31 DQS + WC | 279 | 1.5400 |
| 10271-2200 | 22 | 6 x 36 DQS + WC | 346 | 1.8900 |
- For winches and excavators
