Jakob Rope Systems

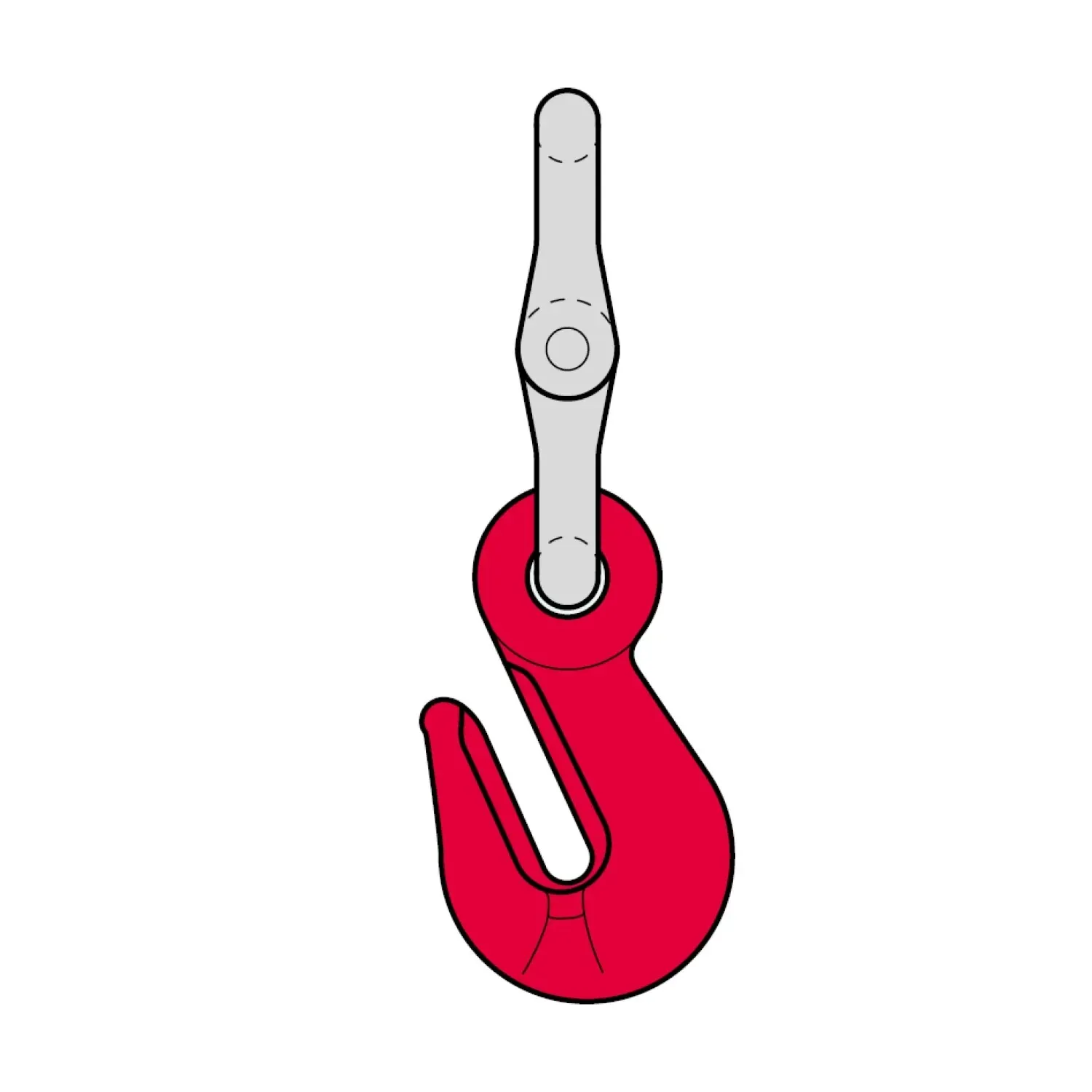

Chain-shortening hook with eye end class 8
Chains class 8 and accessories by Jakob Rope Systems, steel. 5 sizes, article no. 80340-0600 to 80340-1600.
Price on request
- Rated ropes, chains and slings with documented working loads
- Terminations and accessories matched to the rope
- Rigging and lifting design by 828 engineers
- Inspection, load testing and certification available
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 80340 |
| Category | Wire Rope, Chain & Rigging |
| Product family | Chains class 8 and accessories |
| Material | Steel |
| Surface | painted |
| Nominal strength | class 8 |
| Sizes available | 5 article numbers |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Overhead, Gantry & Jib Cranes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 80340
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | Status | ø | b1 | b2 | g | ø d1 | ø d2 | WLL kN | kg |
|---|---|---|---|---|---|---|---|---|---|
| 80340-0600 | 6 | 81 | 60 | 7 | 15 | 8 | 11.2 | 0.2000 | |
| 80340-0780 | 7-8 | 102 | 60 | 9 | 15 | 12 | 20 | 0.3000 | |
| 80340-1000 | 10 | 124 | 80 | 11 | 19 | 11 | 31.5 | 0.6000 | |
| 80340-1300 | Phased out | 13 | 157 | 101 | 16 | 25 | 17 | 53 | 1.4000 |
| 80340-1600 | Phased out | 16 | 198 | 128 | 18 | 30 | 20 | 80 | 2.6000 |
- Safety factor 4
