Jakob Rope Systems

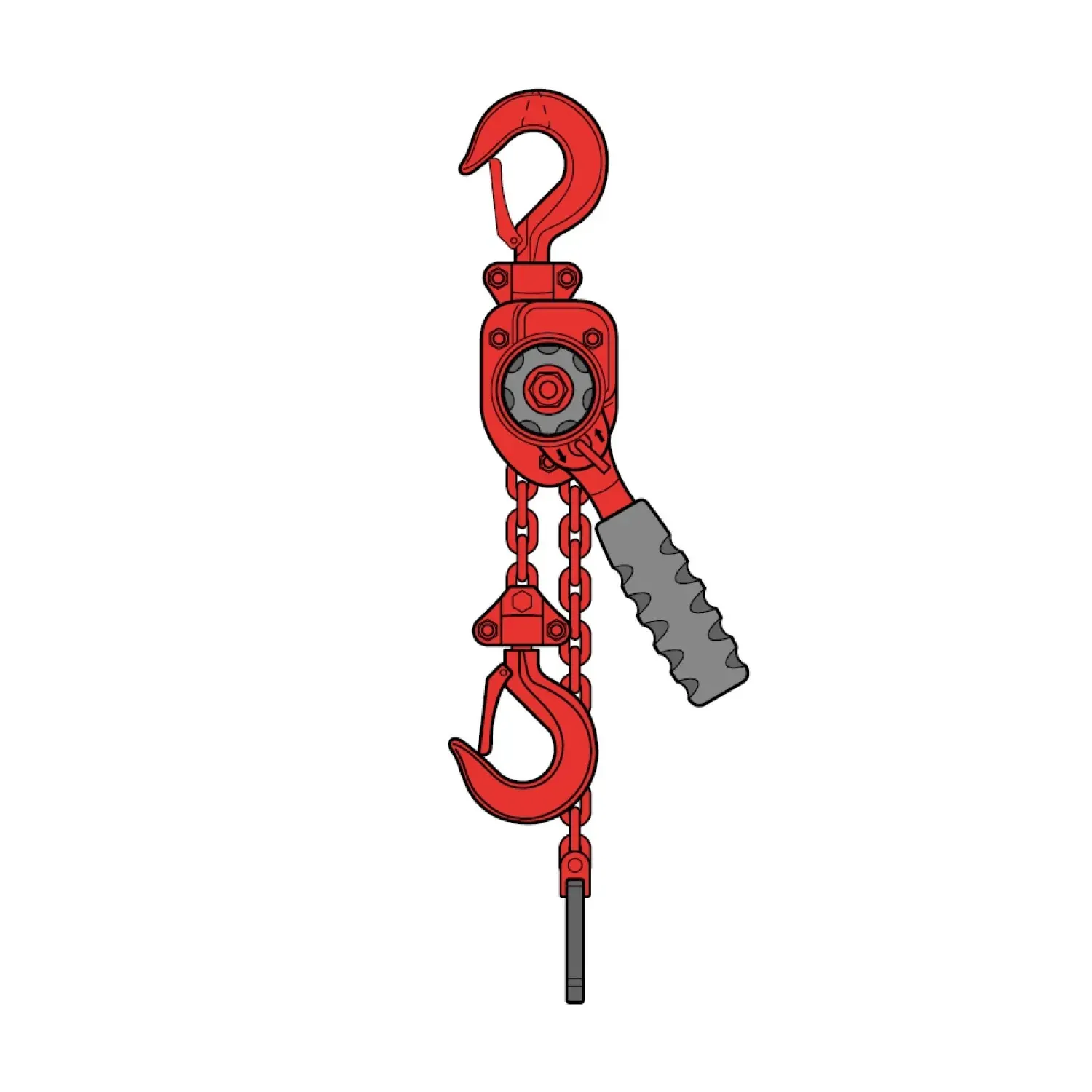

Chain hoist type 250
Chain hoists by Jakob Rope Systems. 2 sizes, article no. 80420-0250 to 80420-0500.
Price on request
- Rated ropes, chains and slings with documented working loads
- Terminations and accessories matched to the rope
- Rigging and lifting design by 828 engineers
- Inspection, load testing and certification available
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 80420 |
| Category | Wire Rope, Chain & Rigging |
| Product family | Chain hoists |
| Sizes available | 2 article numbers |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Overhead, Gantry & Jib Cranes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 80420
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | ø | b1 | b2 | b3 | b4 | g | k | Typ | WLL kN | kg |
|---|---|---|---|---|---|---|---|---|---|---|
| 80420-0250 | 4 | 240 | 72 | 95 | 160 | 21 | 14 | 250 A | 2.45 | 2.2000 |
| 80420-0500 | 4 | 282 | 104 | 116 | 160 | 24 | 12 | 500 A | 4.9 | 2.8000 |
- This very compact chain hoist has a body made of rugged steel sheet.
- Thanks to its low weight and smooth idling, the chain hoist is handy and versatile.
- Because of its low force requirement and short ratchet handle, it is also ideal for deployment in tight spaces.
- It is forbidden to use this product for the transportation of people.
