Jakob Rope Systems

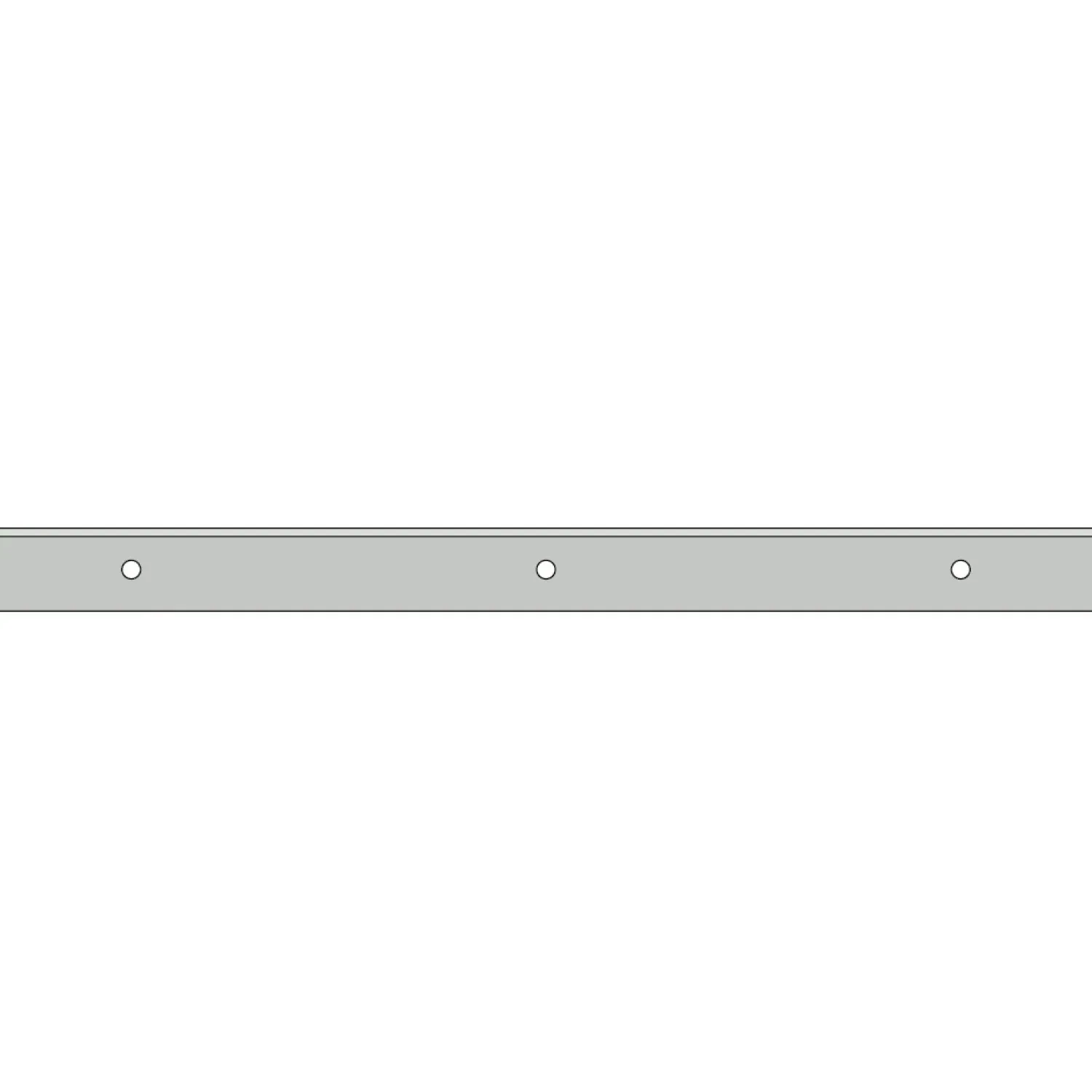

Angle section GreenTrellis
Angle sections by Jakob Rope Systems, stainless steel AISI 316L (1.4404). 3 sizes, article no. 30922-4040-0850 to 30922-4040-2050.
Price on request
- Marine-grade stainless steel for long service life
- Complete system: rope or rod, terminals and fixings from one range
- Load and tension design by 828 rope engineers
- Supply, swaging and installation by 828
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 30922-4040 |
| Category | Architectural Cables & Fittings |
| Product family | Angle sections |
| Material | Stainless steel 316L |
| Surface | rolled and stained |
| Standard | DIN 1028/EN 10056 |
| Sizes available | 3 article numbers |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Architectural Ropes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 30922-4040
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | b1 | b2 | s | kg |
|---|---|---|---|---|
| 30922-4040-0850 | 800 | 850 | 200 | 2.0760 |
| 30922-4040-1450 | 1400 | 1450 | 200 | 3.5470 |
| 30922-4040-2050 | 2000 | 2050 | 200 | 5.0180 |
- Item of the GreenTrellissolution.
- Profiles with fixed lengths and predefined holes.
- Suitable for connector GreenTrellis 30922-4040-0350.
