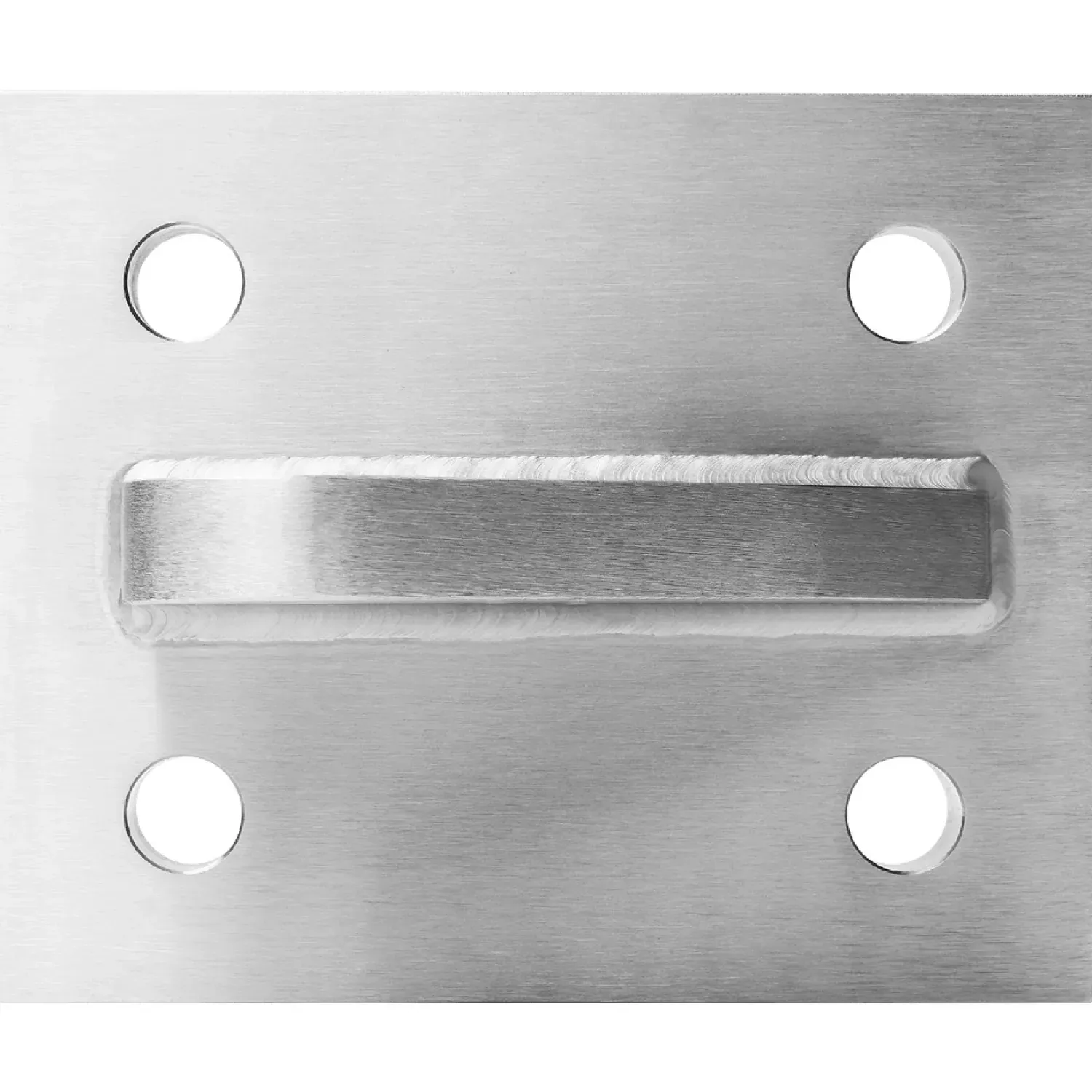

Anchor plate for Clevis
Anchorplates by Jakob Rope Systems, stainless steel AISI 316L (1.4404). 5 sizes, article no. 30818-0003-08 to 30818-0003-20.
Price on request
- Marine-grade stainless steel for long service life
- Complete system: rope or rod, terminals and fixings from one range
- Load and tension design by 828 rope engineers
- Supply, swaging and installation by 828
| Brand | Jakob Rope Systems |
|---|---|
| Product no. | 30818-0003 |
| Category | Architectural Cables & Fittings |
| Product family | Anchorplates |
| Material | Stainless steel 316L |
| Sizes available | 5 article numbers |
| Manufacturer origin | Switzerland · production in Vietnam |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Architectural Ropes |
CertifiedManufacturer certificates with every order
InstalledBy 828-trained technicians
InspectedAnnual inspection programmes
Product no. 30818-0003
Article Numbers.
Quote the article number for the exact size. Dimensions in mm, loads in kN, weights in kg, as labelled on the manufacturer’s technical drawing.
| No. | b1 | b2 | b3 | b4 | b5 | b6 | b7 | c | e | k | ø d1 | ø d2 | kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30818-0003-08 | 100 | 100 | 70 | 15 | 70 | 27 | 65 | 21 | 12 | 8 | 9 | 11 | 0.7090 |
| 30818-0003-10 | 100 | 100 | 70 | 15 | 70 | 28 | 72 | 23 | 13 | 10 | 11 | 11 | 0.9100 |
| 30818-0003-12 | 125 | 120 | 85 | 20 | 80 | 34 | 95 | 27 | 19 | 12 | 13 | 13 | 1.6700 |
| 30818-0003-16 | 145 | 120 | 95 | 25 | 70 | 41 | 110 | 33 | 21 | 15 | 17 | 15 | 2.4600 |
| 30818-0003-20 | 205 | 150 | 155 | 25 | 100 | 70 | 129 | 39 | 25 | 20 | 21 | 19 | 5.5800 |
- The anchor plates serve as attachment points for the ropes and tension rod system.
- The anchor plates are compatible with numerous clevis-ends as well as with the toggle. The compatibility is described in the technical data sheet.
- The anchorage must be able to transfer at least the component resistance. This is possible with commer-cially available composite anchors under the following conditions:
- Concrete quality C25/30 (cracked), anchor rod A4-70, composite epoxy resin high-performance injection anchor or vinyl ester urethane mortar anchor.
- Please refer to the additional information and planning guide in the Forte catalog.
