Aluminum Alloy Rail

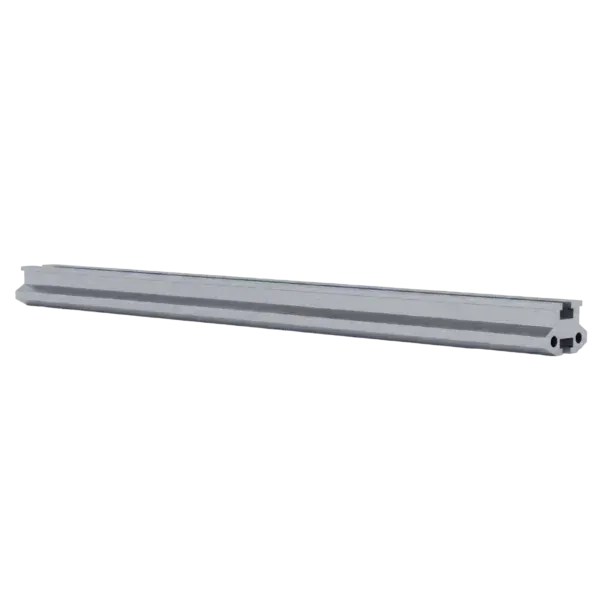

Groxx Aluminum Alloy Rail (Straight)
The Groxx GRXRLS14 is a high-rigidity straight rail section engineered to provide a continuous and stable fall protection path. As a core component of a rigid anchorage system, it ensures consistent shuttle load-bearing for non-disconnection mobile protection across various structural elevations.
Core Performance Features
High Rigidity & Low Deflection: Engineered to minimize swing and deflection under dynamic load, providing a stable platform for users working at heights.
Multi-Directional Installation: The profile supports versatile mounting configurations, including overhead, side-mounted, or inverted layouts, to suit specific structural requirements.
Precision Engineering: Features a smooth, burr-free surface to prevent shuttle jamming, with an allowable installation misalignment angle of 15 degrees.
Flexible Layouts: While this model is straight, the system architecture allows for integration with curved sections to create a customized, comprehensive safety perimeter.
Technical Specifications
Feature
Specification
Model Number
GRXRLS14
Material
High-Grade Aluminum Alloy (AL)
Static Strength
12 kN
Safety Factor
1.5
Linear Weight
3.066 kg/m
Profile Dimensions
55 mm (W) x 38 mm (H)
Standard Lengths
3m / 4m (Stock); 6m (Customizable)
System Integration & Accessories
The GRXRLS14 rail serves as the structural foundation for a complete fall arrest solution:
End Safety: Must be terminated with the GRXRLS13 Rail Bumper (Ref: ADA2503070004) or a specialized Stopper to prevent accidental shuttle detachment.
Mobile Anchorage: Compatible with the GRXRLS12 Horizontal Rail Traveler, which utilizes low-resistance bearings to glide along the rail.
Structural Fixing: Secured to the primary building substrate via the GRXRLS11 Rail Support, which controls system span and stiffness.
Compliance & Standards
The GRXRLS14 is tested and certified to meet rigorous international safety requirements:
EN 795:2012 Type D: Certified as a rigid anchor line for personal fall protection (Rated for 1 user).
CEN/TS 16415:2013: Compliant for multi-user applications, supporting up to 3 users simultaneously.
Validity Period: Rated for a 10-year service life, subject to mandatory annual professional inspections.
The Groxx Advantage
The GRXRLS14 Aluminum Rail combines lightweight handling with industrial-strength protection. Its ability to be mounted in multiple orientations while maintaining a smooth, non-jamming surface makes it the preferred choice for both interior industrial overhead tracks and exterior architectural facade maintenance systems.
