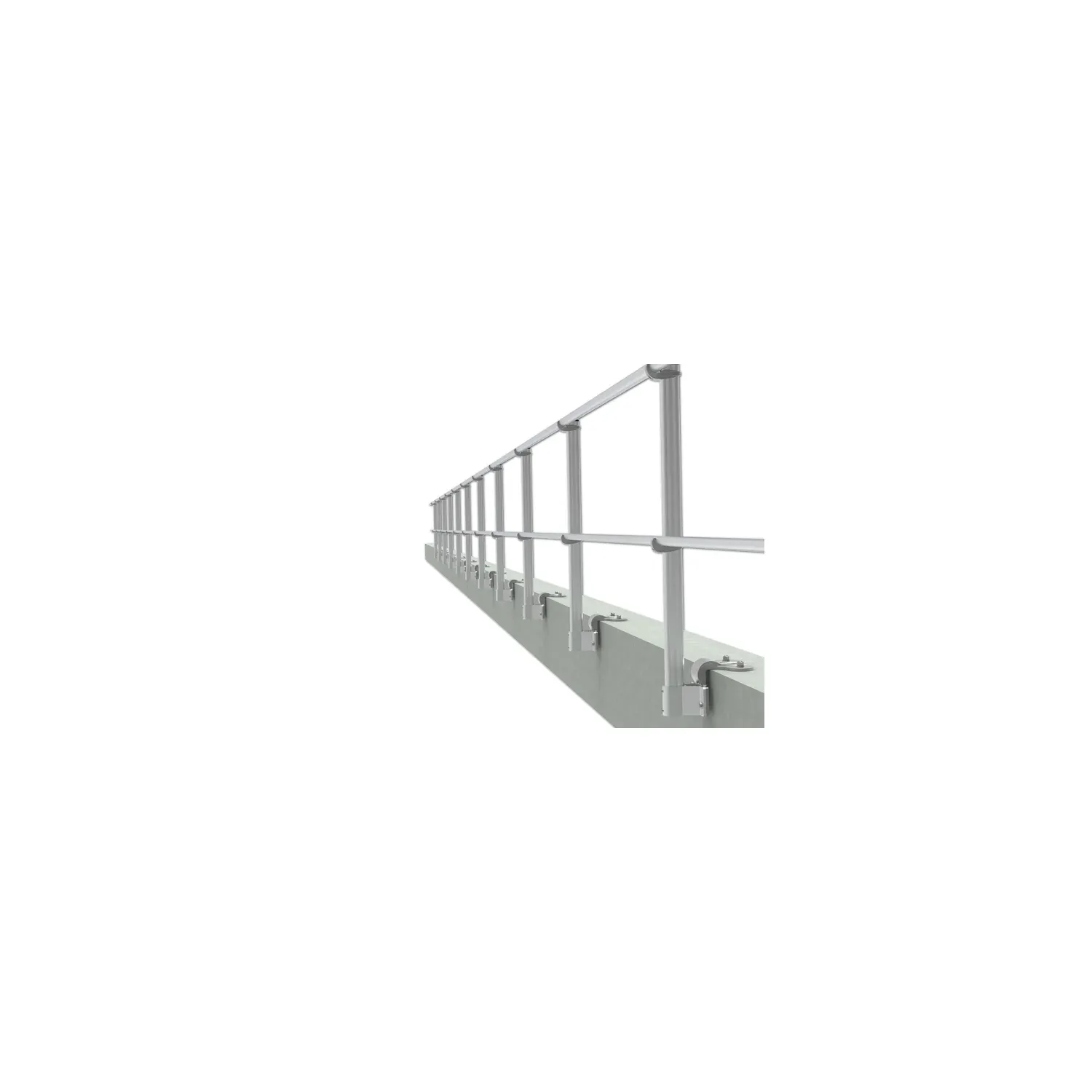

Z-Bracket Guardrail System
Aluminium guardrail on Z-shaped brackets fixed to the parapet below its capping, so the parapet waterproofing is not disturbed.
Price on request
- Completes a safe, compliant work area
- Selected to match your site and system
- Supply and installation by 828
- Supplied with manufacturer certification
| Brand | 828 Cable System |
|---|---|
| Model / SKU | On request |
| Category | Guardrail, Fencing & Hardware |
| Product family | Z-bracket guardrail |
| Material | Aluminium |
| Upright height | At least 1,100 mm |
| Gap between handrail and knee rail | Up to 470 / 500 mm |
| Post span | Up to 1,750 / 2,500 mm |
| First post from wall / free end overhang | Up to 500 mm |
| Made to suit | Post height and run length specified per project |
| Standards | EN 14122-3:2016 and EN 13374:2013+A1:2018 |
| Parapet brackets | For 70, 130 and 160 mm parapets |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Guardrail Systems |
Z-brackets fix to the side of the parapet below the capping or covering, so the top of the parapet and its waterproofing stay untouched. Brackets suit 70, 130 and 160 mm parapets.
Where it fits
- Parapets with metal capping or waterproofed tops
- Retrofits on finished buildings
Supplied and installed by 828
828 surveys the roof edge, confirms the right system and post layout, and supplies and installs the guardrail with handover documents. Systems are made to suit your parapet, roof finish and run length.
Be the First to Review.
Used this product on a project? Tell other buyers how it performed.
Guardrail Systems.
Aluminium guardrail systems for roofs and platforms: freestanding, parapet-mounted, Z-bracket and wall-bracket, in straight or inclined versions, to EN 14122-3 and EN 13374.
