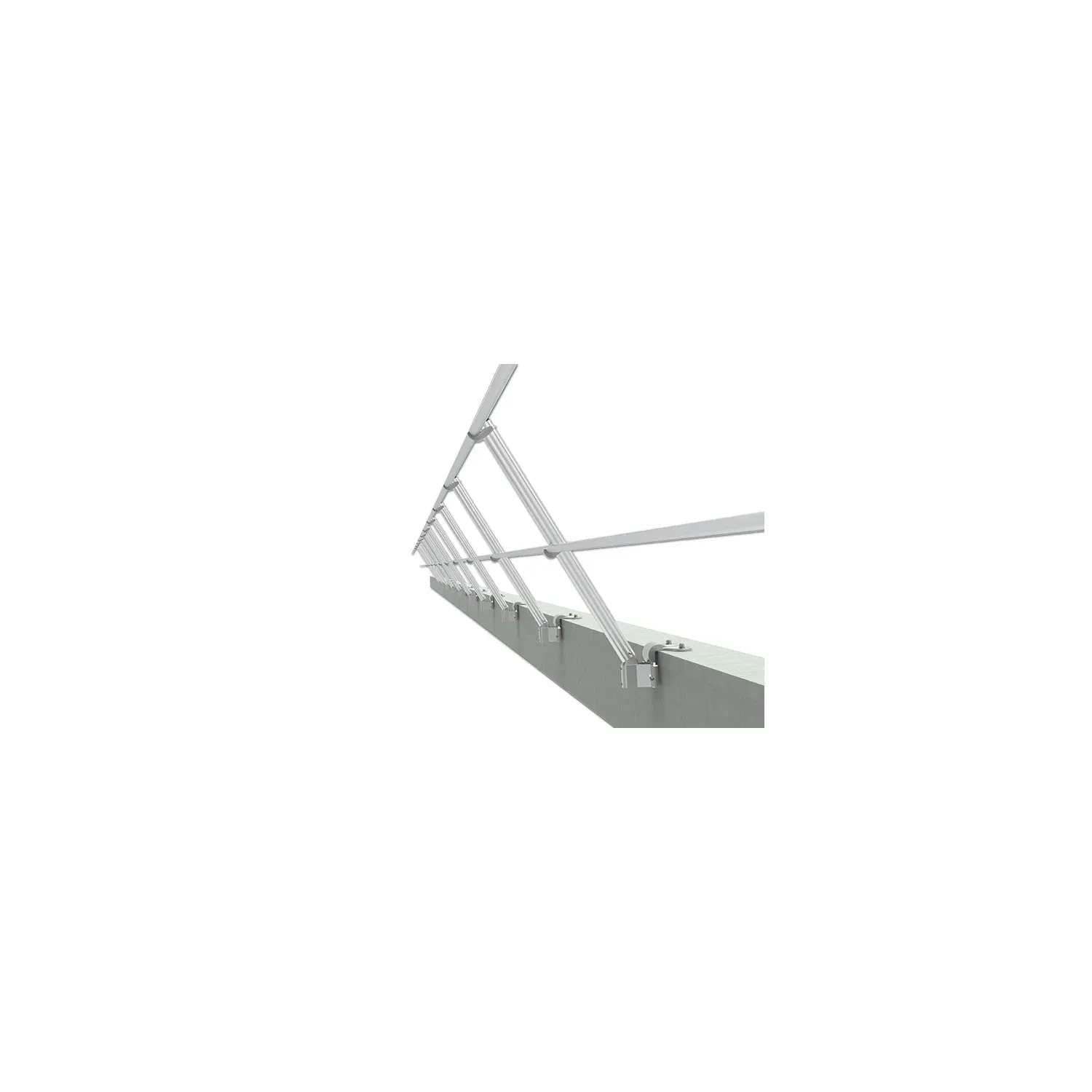

Inclined Z-Bracket Guardrail System
Z-bracket guardrail with inclined posts, fixed below the parapet capping for a low-profile edge that keeps the waterproofing intact.
Price on request
- Completes a safe, compliant work area
- Selected to match your site and system
- Supply and installation by 828
- Supplied with manufacturer certification
| Brand | 828 Cable System |
|---|---|
| Model / SKU | On request |
| Category | Guardrail, Fencing & Hardware |
| Product family | Z-bracket guardrail |
| Material | Aluminium |
| Upright height | At least 1,100 mm |
| Gap between handrail and knee rail | Up to 500 mm |
| Post span | Up to 1,750 mm |
| First post from wall / free end overhang | Up to 500 mm |
| Made to suit | Post height and run length specified per project |
| Standards | EN 14122-3:2016 and EN 13374:2013+A1:2018 |
| Parapet brackets | For 70, 130 and 160 mm parapets |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Guardrail Systems |
The inclined version of the Z-bracket system: fixed below the parapet covering, with posts that lean outwards for a lower visual profile.
Where it fits
- Capped parapets on visible elevations
- Retrofits where the parapet top cannot be drilled
Supplied and installed by 828
828 surveys the roof edge, confirms the right system and post layout, and supplies and installs the guardrail with handover documents. Systems are made to suit your parapet, roof finish and run length.
