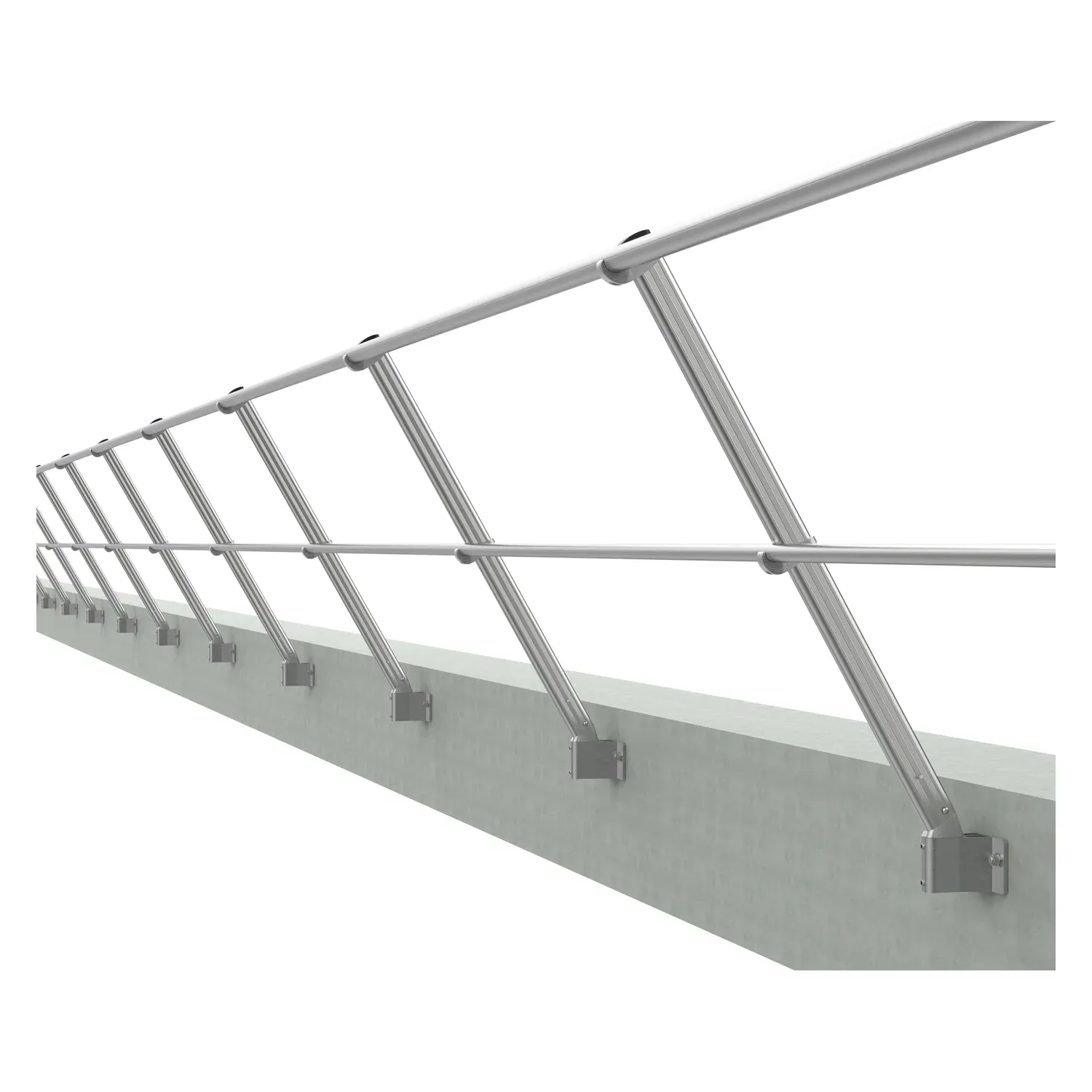

Inclined Wall Bracket Guardrail System
Wall bracket guardrail with inclined posts, giving a larger safe zone above a low parapet or wall.
Price on request
- Completes a safe, compliant work area
- Selected to match your site and system
- Supply and installation by 828
- Supplied with manufacturer certification
| Brand | 828 Cable System |
|---|---|
| Model / SKU | On request |
| Category | Guardrail, Fencing & Hardware |
| Product family | Wall bracket guardrail |
| Material | Aluminium |
| Upright height | At least 1,100 mm |
| Gap between handrail and knee rail | Up to 500 mm |
| Post span | Up to 1,750 mm |
| First post from wall / free end overhang | Up to 500 mm |
| Made to suit | Post height and run length specified per project |
| Standards | EN 14122-3:2016 and EN 13374:2013+A1:2018 |
| Parapet thickness | More than 120 mm |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Guardrail Systems |
The inclined version of the wall bracket system. Leaning the posts outwards widens the safe zone above a low parapet, mounted on top of or inside the wall.
Where it fits
- Low parapets where more working room is needed
- Permanent protection on existing walls
Supplied and installed by 828
828 surveys the roof edge, confirms the right system and post layout, and supplies and installs the guardrail with handover documents. Systems are made to suit your parapet, roof finish and run length.
