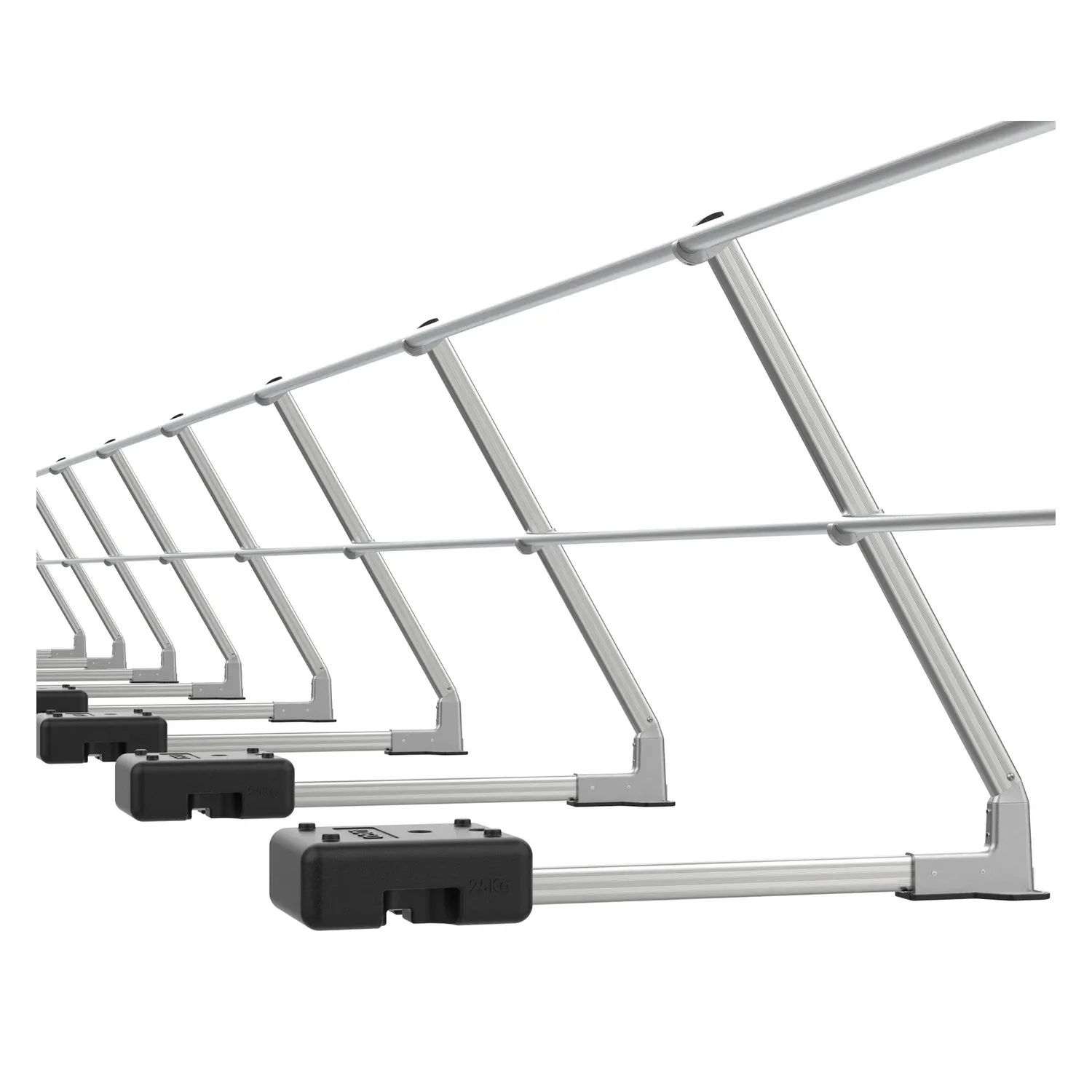

Inclined Freestanding Guardrail System
Counterweighted guardrail with inclined posts that lean away from the walkway, giving a wider protected zone with no fixing.
Price on request
- Completes a safe, compliant work area
- Selected to match your site and system
- Supply and installation by 828
- Supplied with manufacturer certification
| Brand | 828 Cable System |
|---|---|
| Model / SKU | On request |
| Category | Guardrail, Fencing & Hardware |
| Product family | Freestanding guardrail |
| Material | Aluminium |
| Upright height | At least 1,100 mm |
| Gap between handrail and knee rail | Up to 470 / 500 mm |
| Post span | Up to 1,750 / 2,500 mm |
| First post from wall / free end overhang | Up to 500 mm |
| Made to suit | Post height and run length specified per project |
| Standards | EN 14122-3:2016 and EN 13374:2013+A1:2018 |
| Base module length | 1,330 / 1,630 mm |
| Counterweights | 25 kg ballast blocks, 390 mm wide; no drilling or fixing |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Guardrail Systems |
The inclined posts angle the rail outwards, so the protected zone is wider than with a straight post. Like the standard freestanding system, it is held by counterweights and needs no drilling.
Where it fits
- Roofs where the guardrail cannot be fixed
- Routes that need more working room at the edge
- Temporary or permanent collective protection
Supplied and installed by 828
828 surveys the roof edge, confirms the right system and post layout, and supplies and installs the guardrail with handover documents. Systems are made to suit your parapet, roof finish and run length.
