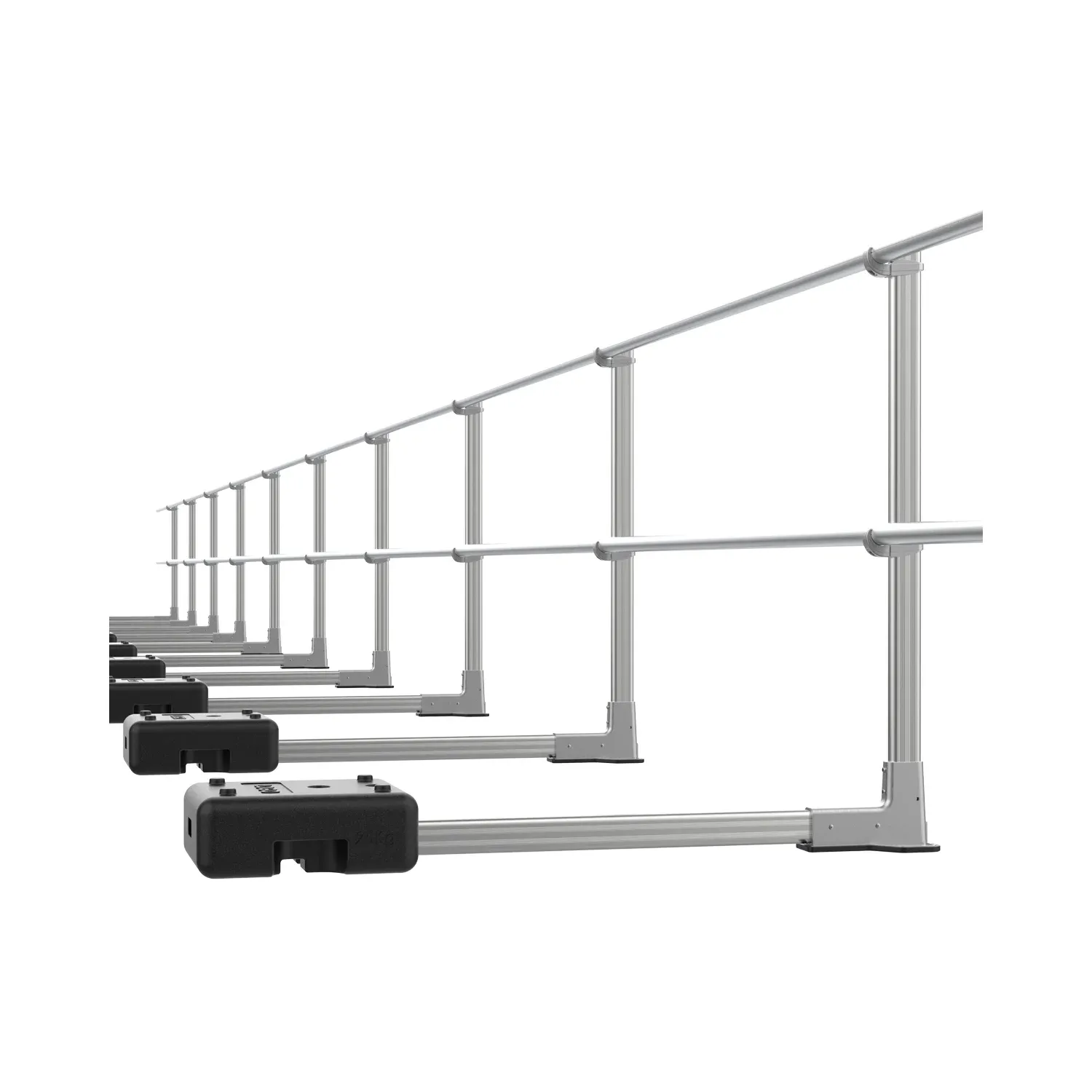

Freestanding Guardrail System
Counterweighted aluminium guardrail that stands on the roof without drilling, for non-public roof decks where the railing cannot be fixed to the parapet or slab.
Price on request
- Completes a safe, compliant work area
- Selected to match your site and system
- Supply and installation by 828
- Supplied with manufacturer certification
| Brand | 828 Cable System |
|---|---|
| Model / SKU | On request |
| Category | Guardrail, Fencing & Hardware |
| Product family | Freestanding guardrail |
| Material | Aluminium |
| Upright height | At least 1,100 mm |
| Gap between handrail and knee rail | Up to 470 / 500 mm |
| Post span | Up to 1,750 / 2,500 mm |
| First post from wall / free end overhang | Up to 500 mm |
| Made to suit | Post height and run length specified per project |
| Standards | EN 14122-3:2016 and EN 13374:2013+A1:2018 |
| Base module length | 1,330 / 1,630 mm |
| Counterweights | 25 kg ballast blocks, 390 mm wide; no drilling or fixing |
| Certification | Supplied with manufacturer certification — see spec sheet for the applicable standard |
| Supplied in PH by | 828 Cable System Inc. |
| Installation | Available — see Guardrail Systems |
A freestanding guardrail gives the whole team collective edge protection without anchoring into the roof. Each post sits on a base arm held down by counterweights, so the waterproofing stays intact and the system can be installed on new or existing buildings.
Where it fits
- Roof decks that are not open to the public
- Roofs where the parapet or slab cannot be drilled
- Maintenance routes to plant and equipment
Supplied and installed by 828
828 surveys the roof edge, confirms the right system and post layout, and supplies and installs the guardrail with handover documents. Systems are made to suit your parapet, roof finish and run length.
