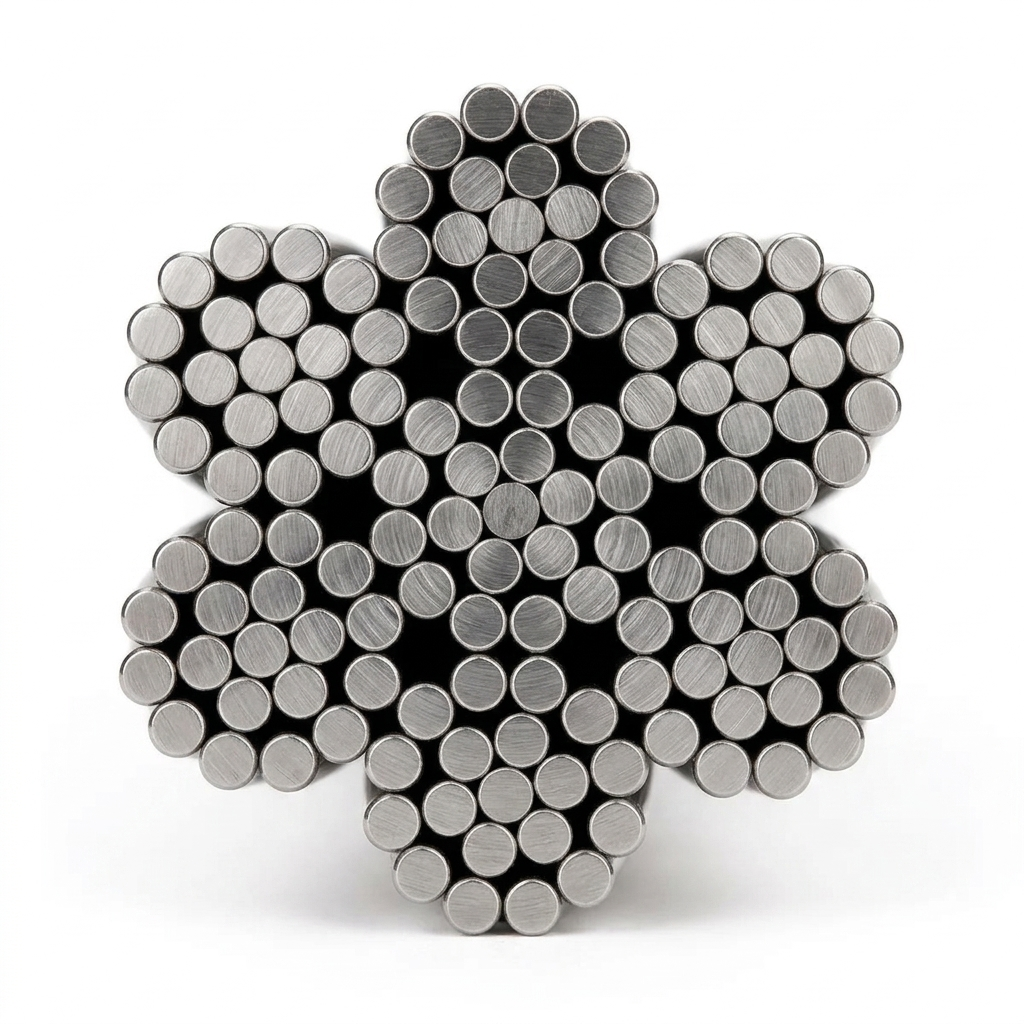

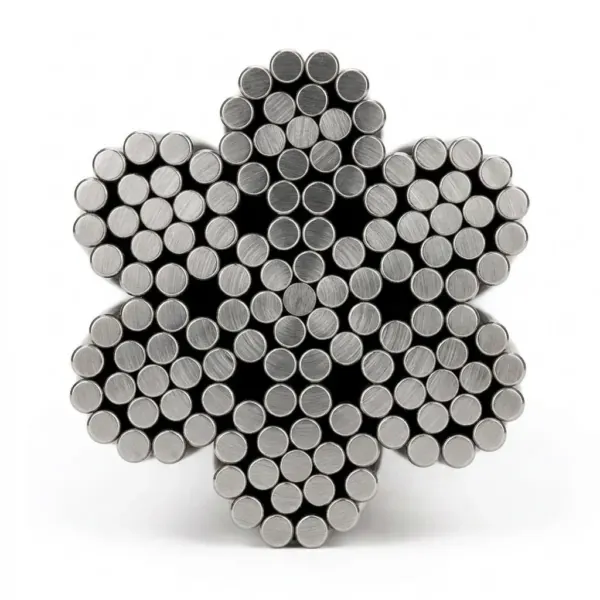

7 x 19 Stainless Wire Rope
This high-tensile 316 Stainless Steel wire rope is engineered for peak performance in both Vertical Anchorage and Horizontal Lifeline (HLL) systems. With a specialized 7×19 construction, it offers the perfect balance of flexibility and extreme breaking strength for fall protection environments.
Core Features
Optimized Construction: The 7×19 strand configuration provides superior flexibility, making it ideal for running over pulleys or through intermediate brackets.
Corrosion Resistance: Manufactured from Grade 316 Stainless Steel, ensuring long-term durability in harsh marine or industrial settings.
High-Volume Supply: Delivered in 500m bulk rolls to accommodate large-scale installations and reduce onsite wastage.
Technical Specifications
Attribute
Specification
Wire Diameter
8mm
Material
Grade 316 Stainless Steel
Minimum Breaking Strength (MBS)
39 kN
Linear Weight
0.256 kg/m
Total Roll Weight
Approximately 127 kg
Compliance & Standards
This wire rope is manufactured and tested to meet rigorous international safety requirements:
EN 12385-4 + A1:2008: Steel wire ropes – Safety – Part 4: Stranded ropes for general lifting applications.
Pro-Tip: When installing this wire rope with the Intermediate Bracket, ensure the tension is calibrated to stay within the 11.5 kN maximum force limit for multi-user systems.
