19 x K7

Groxx | 19×7 Compacted Steel Wire Rope

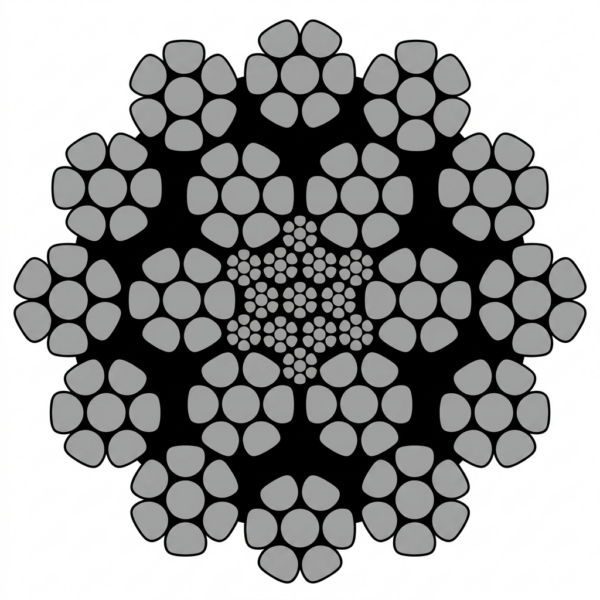

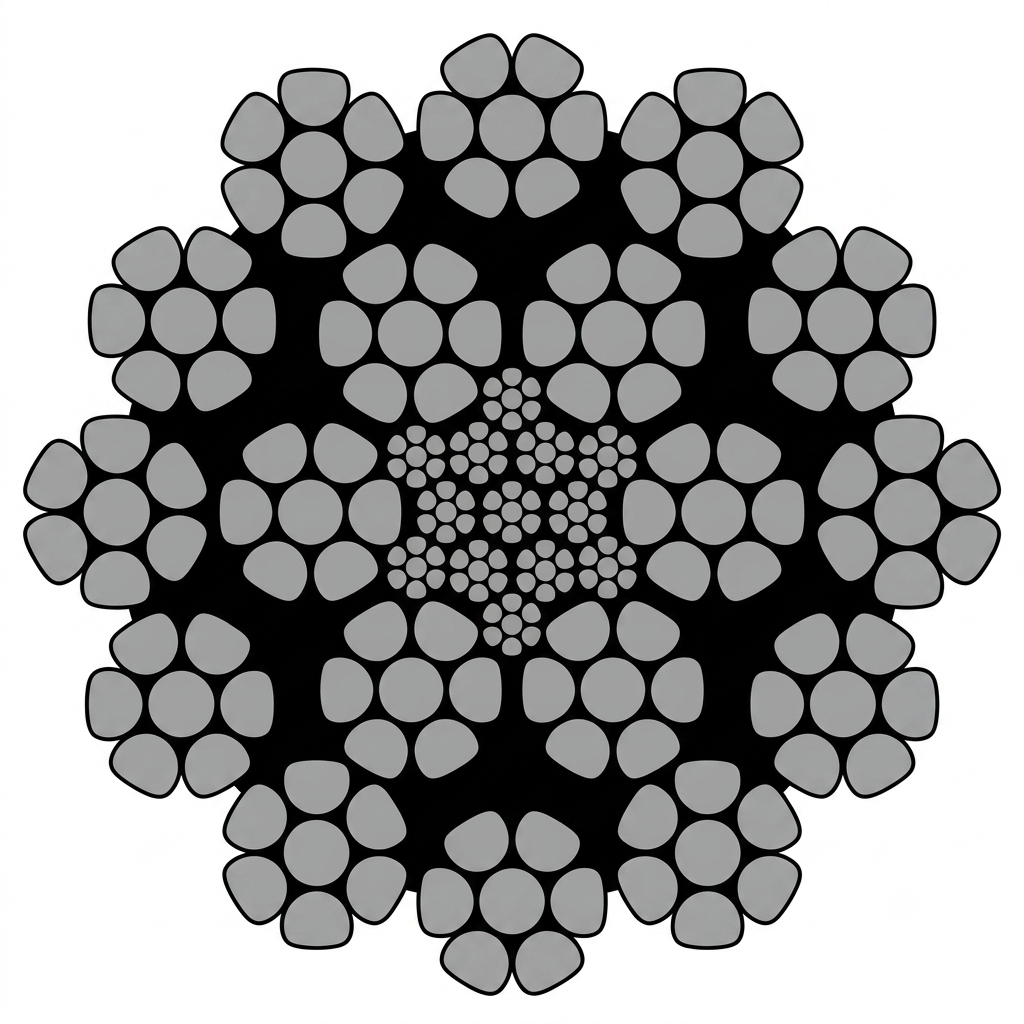

High-Performance Rotation-Resistant Wire Rope
The Groxx 19×7 Compacted Steel Wire Rope is an industrial-grade, non-rotating wire rope engineered for crane hoist lines, main and auxiliary winches, and deep vertical lifting applications. Designed with a rotation-resistant strand layout, this rope resists twisting under load while offering exceptional pulley wear characteristics and higher breaking loads across all diameter sizes.

Core Performance Features

Rotation-Resistant Engineering: Constructed to counteract rotational torque under load, keeping lifted materials stable and preventing line spin.

Versatile Lay Options: Available in both ordinary lay (regular lay) and Lang’s lay configurations to suit varying winch drum and pulley setups.

Galvanized Protective Finish: Hot-dip galvanized coating provides long-lasting resistance against rust, salt spray, and harsh weather exposure.

Pulley & Sheave Optimized: Smooth strand geometry maximizes contact surface area with pulleys, reducing sheave wear and extending rope service life.

Optional Plastic Impregnation: Available with custom internal plastic impregnation and specialized lubrications to achieve higher breaking strength and superior internal abrasion resistance.

Breaking Load & Technical Specifications

Nominal Diameter
Approximate Mass
Minimum Breaking Load (1770 MPa)
Minimum Breaking Load (1770 MPa)
Minimum Breaking Load (1960 MPa)
Minimum Breaking Load (1960 MPa)

[mm]
[kg/m]
[kN]
[Kg]
[kN]
[Kg]

12
0.634
91.66
9,349
101.84
10,388

13
0.744
107.57
10,972
119.52
12,191

14
0.862
124.75
12,725
138.62
14,139

15
0.990
143.22
14,608
159.13
16,231

16
1.126
162.95
16,621
181.05
18,467

18
1.426
206.23
21,035
229.15
23,373

20
1.760
254.61
25,970
282.89
28,855

22
2.130
308.07
31,423
342.30
34,915

24
2.534
366.63
37,396
407.36
41,551

26
2.974
430.28
43,889
478.09
48,765

28
3.450
499.03
50,901
554.47
56,556

30
3.960
572.86
58,432
636.51
64,924

Key Applications

Tower & Mobile Cranes: Primary or secondary hoist lines operating over multi-reeved sheaves.

Industrial Winches: Smooth spooling on multilayer drums due to its outer strand stability.

Piling & Foundation Rigging: High-tension vertical extraction under severe dynamic loads.

Deck Cranes & Marine Hoists: Corrosion-protected galvanized construction ideal for salt-water and offshore environments.
