I – Bracket

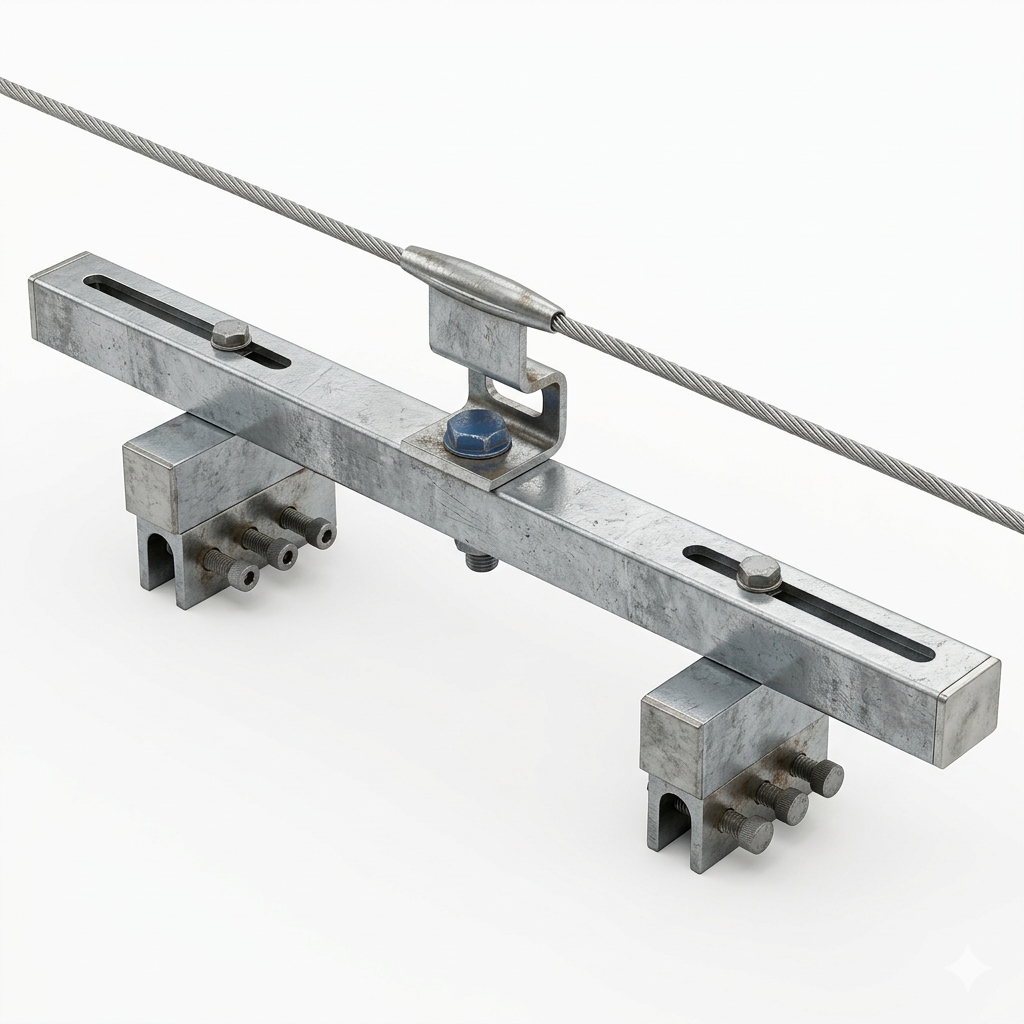

Groxx I-Bracket | AL80010 Intermediate Post
The AL80010 Groxx I-Bracket is a high-performance intermediate anchor designed for horizontal lifeline systems on standing seam and Kliplok® roof profiles. Engineered for versatility and structural protection, this bracket adapts to a wide range of seam distances while providing critical energy absorption during a fall event.
(PRODUCT DOES NOT INCLUDE CLAMP AND LIFELINE COMPONENT)
Key Features & Performance
Adaptive Roof Compatibility: The adjustable cross-arm design accommodates broad seam spacings ranging from 320mm to 750mm, making it compatible with a vast array of standing seam and concealed-fix roof profiles.
Integrated Energy Absorber: Features a built-in shock-absorbing anchor post. In the event of a fall, the post deforms predictably to dissipate kinetic energy, significantly reducing the force transferred to the user and the roof substrate.
Multi-User Rated: Robustly engineered to support up to 4 simultaneous users when integrated into a certified horizontal lifeline system.
Dual-Purpose Anchorage: The 316 Stainless Steel eyelet serves as a smooth pass-through for lifeline cables or as a high-strength independent anchorage point.
Non-Penetrative Mounting: Designed to be used with specialized clamps that grip the roof seams, preserving the building’s thermal performance and watertight warranty.
Material Specifications
Component
Material & Grade
Finish
Cross Arm
6061-T6 Structural Aluminum
Anodized
Anchor Point
316 Stainless Steel
Polished
Standing Seam Clamps
6005-T5 Aluminum
Anodized
Hardware
M10 SS316 (Grade A4-70)
Natural
Technical Data & Compliance
Minimum Breaking Strength (MBS): 15 kN
System Weight: 3.214 kg (± 0.050 kg)
Global Standards:
EN 795:2012 Type A (Single point anchors)
TS 16415:2013 Type A (Multi-user requirements)
AS/NZS 5532:2013 (Manufacturing requirements for single-point anchor device)
The Groxx Advantage
The AL80010 combines lightweight aluminum construction with the industrial strength of 316 Stainless Steel. By utilizing an anodized finish, the bracket is shielded against harsh UV rays and salt-air corrosion, ensuring a long service life with minimal maintenance on even the most exposed industrial rooftops.
