MATERIAL:
Eye Nut : 316 Stainless Steel
Threaded Bolt : 316 Stainless Steel M12 x 75
Chemical Adhesive Capsule : 10HVU M12x110 Code: 256693
MINIMUM BREAKING STRENGTH:
15kN
CONFORMS TO:
EN 795:2012 Type A
WEIGHT:
277 gm + 10 gm

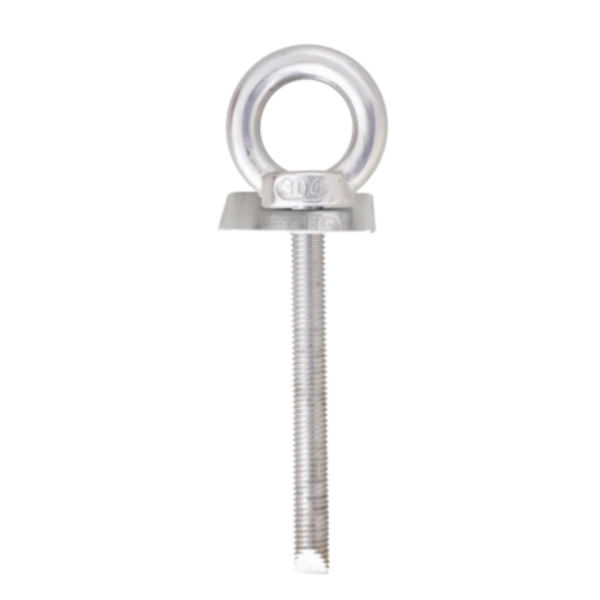

Edge Stainless Steel M12 X 75MM Concrete Anchor Point
Part Number: AFA935515(75)
Description
AFA935515(75)-Edge Stainless Steel M12 X 75MM Concrete Anchor Point
FEATURES:
- Chemical Anchor point is used for personal fall arrest systems (a single person) or for restraint /rescue.
- Simple and easy to use by connecting a lanyard or SRL which attaches directly to a full body harness.
- 14mm dia. x 75mm hole required for bolt
- Supplied with Stainless Steel ID Tag.
- Refer Hilti HVU for installation guide.
- Chemical Adhesive Capsule is not supplied with the bolt. Refer Hilti part number 256693 for 10HVU M12x110
- Suitable for Abseiling
